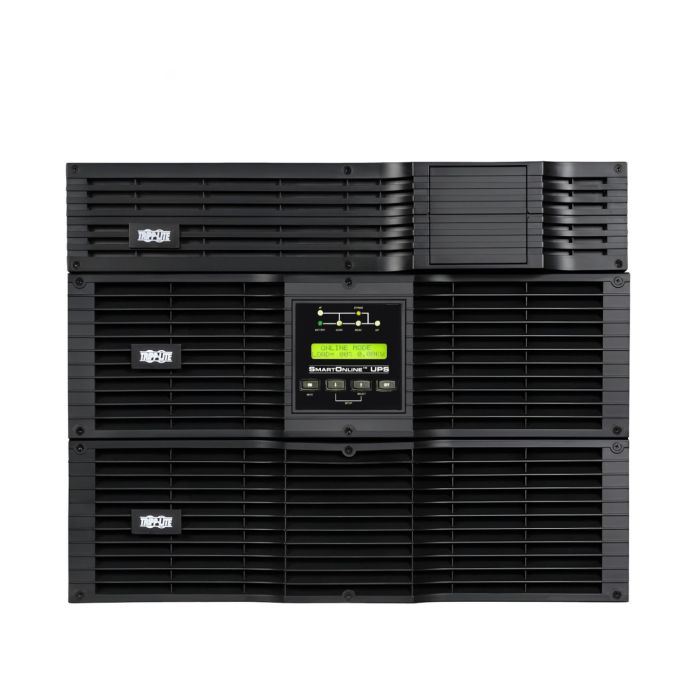

Tripp Lite Smart-Online UPS 8000VA 7200W RM 6U 50A 208/240V SU8000RT3UN50TF - Refurb

UPS Type

On-Line

Input Phase

Single-Phase

Rated input current (Maximum Load)

44.2A (208V)

Nominal Input Voltage(s) Supported

200V AC; 208V AC; 240V AC

UPS Input Connection Type

Hubbell CS8265; Hardwire

UPS Input Connection Description

 3 wire single phase input (L1, L2, G)

UPS Input Cord Length (ft.)

10

UPS Input Cord Length (m)

3.1

Rated input current (Maximum Load)

46A (200V), 44.2A (208V), 41.8A (220V), 40A (230V), 38.3A (240V)

Recommended Electrical Service

208V 50A

Output Volt Amp Capacity (VA)

8000

Output kVA Capacity (kVA)

8

Output Watt Capacity (Watts)

7200

Output kW Capacity (kW)

7.2

Output Capacity Details

Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as load levels are reduced to 95% or less

Power Factor

0.9

Crest Factor

3:1

Nominal Voltage Details

7200 watts total output supported; 5000 watts maximum 120V output; Add 1 additional SU5000XFMRT2U
transformer for full load 120V operation; This configuration requires the Power Module be set to 208V output voltage;
included step-down transformer supports 120V output

Frequency Compatibility

50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion

Frequency Compatibility Details

Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (No de-rating); Output frequency regulation +/- 0.05Hz (free running).

Output Voltage Regulation (Line Mode)

+/- 2%

Output Voltage Regulation (Economy Line Mode)

+/- 10%

Output Voltage Regulation (Battery Mode)

+/- 2%

Output Circuit Breakers

20A double-pole (x2) protects 2 L6-20R outlets each, 30A double-pole (x2) protects 1 L6-30R outlets each, 20A
single-pole (x4) protect 3 5-15/20R outlets each

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

120V; 200V; 208V; 240V

Output Receptacles

Individually Controllable Load Banks

 No

Battery Type

Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.)

5.5 min. (7200w)

Half Load Runtime (min.)

13.5 min. (3600w)

Expandable Runtime

Yes

External Battery Pack Compatibility

BP240V10RT3U ;  BP240V787C-1PH

DC System Voltage (VDC)

240

Battery Recharge Rate (Included Batteries)

Less than 6 hours from 10% to 90% (typical, full load discharge)

Battery Replacement Description

Hot-swappable, user replaceable external battery packs

Voltage Regulation Description

2% output voltage regulation in standard online, double-conversion mode

Overvoltage Correction

Corrects overvoltages up to 300V

Undervoltage Correction

Corrects undervoltages as low as 100V

Front Panel LCD Display

Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH and PORTUGUESE (see manual)

Switches

2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module
replacement

Alarm Cancel Operation

Alarm cancel switch

Audible Alarm

Unique audible alarms for all major UPS, environmental and power conditions (see manual)

LED Indicators

6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options

Output Isolation Transformer

120V output is isolation transformer protected

UPS AC Suppression Joule Rating

2565

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

Primary Form Factor

Rack Height

Cooling Method

Included Battery Pack Dimensions
(hwd / in.)

Included Battery Pack Weight (lbs.)

Included Battery Pack Weight (kg)

Included Mounting Accessory Description

Installation Form Factors Supported
with Included Accessories

Installation Form Factors Supported
with Optional Accessories

Maximum Device Depth (in.)

Minimum Required Rack Depth (inches)

Maximum Device Depth (mm)

Minimum Required Rack Depth (cm)

Minimum Required Rack Depth
(inches)

Optional Mounting Accessory Notes

Primary UPS Depth (mm)

Primary UPS Height (mm)

131

Primary UPS Width (mm)

445

Stepdown Transformer Dimensions
(hwd / cm)

8.89 x 44.45 x 52.83

Stepdown Transformer Dimensions
(hwd / in.)

3.5 x 17.5 x 20.8

Stepdown Transformer Height (mm)

89

Stepdown Transformer Width (mm)

Stepdown Transformer Depth (mm)

528

Stepdown Transformer Weight (kg)

25.85

Stepdown Transformer Weight (lbs.)

57

Unit Dimension Details

Includes 3U UPS/power module, 3U battery pack, 2U SU5000XFMRT2U step down transformer plus SUPDMB710
PDU with bypass; MAXIMUM DEVICE DEPTH specification refers to the whole UPS installed depth with bypass
PDU installed

UPS Housing Material

Steel

UPS Power Module Dimensions (hwd, in.)

5.14 x 17.5 x 25.82

UPS Power Module Dimensions
(hwd, cm)

13.06 x 44.45 x 65.58

UPS Power Module Weight (kg)

19.50

UPS Power Module Weight (lbs.)

43

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

2732

AC Economy Mode BTU / Hr. (Full Load)

1024

Battery Mode Heat Dissipation (BTU/Hr) @ Full Load

2432

AC Mode Efficiency Rating (100% Load)

91%

AC Economy Mode Efficiency Rating (100% Load)

96%

Operating Elevation (ft.)

0-3000m (0 to 10,000 ft.)

Audible Noise

60 dBA at front side 1 meter

Network Management Cards

SNMPWEBCARD ;  TLNETCARD ;  WEBCARDLX ;  MODBUSCARD ;  RELAYIOCARD. For OPTIONAL

Network Monitoring Port Description

Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI
installation requires removal of panel containing USB ports

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

Communications Cable

USB, DB9 serial and EPO cables included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Management Card Description

Network management card optional

Communications Interface

DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)

Transfer Time

No transfer time (0 ms.) in online, double-conversion mode

Transfer Time (Economy Mode)

 8 ms. typical power failure response in optional economy mode

Low Voltage Transfer to Battery
Power (Setpoint)

100V

High Voltage Transfer to Battery
Power (Setpoint)

300V

Cold Start (Startup in Battery Mode During a Power Failure)

Cold-start operation supported

Economy Mode Operation

Optional economy mode enables high efficiency bypass operation with a maximum output voltage variation of +/-
10%. Double conversion mode is automatically restored as mains voltage varies beyond +/-10% with less than 1
millisecond transfer time between modes.

High Availability UPS Features

Auto Probe Monitoring (requires WEBCARDLX); Automatic inverter bypass; Expandable battery backup; Hot
swappable batteries; Hot swappable UPS power module; Manual bypass switch; On-Line/Double-Conversion;
Remote management; Sine wave output; Surge/noise protection; Zero transfer time

Green Energy-Saving Features

High efficiency economy mode operation; Schedulable daily hours of economy mode operation

UPS Applications

Mission Critical Applications

Product Certifications

 IEC 61000; CSA (Canada); NOM (Mexico); UL 1778

Product Compliance

RoHS; FCC Part 15 Class A (USA)
