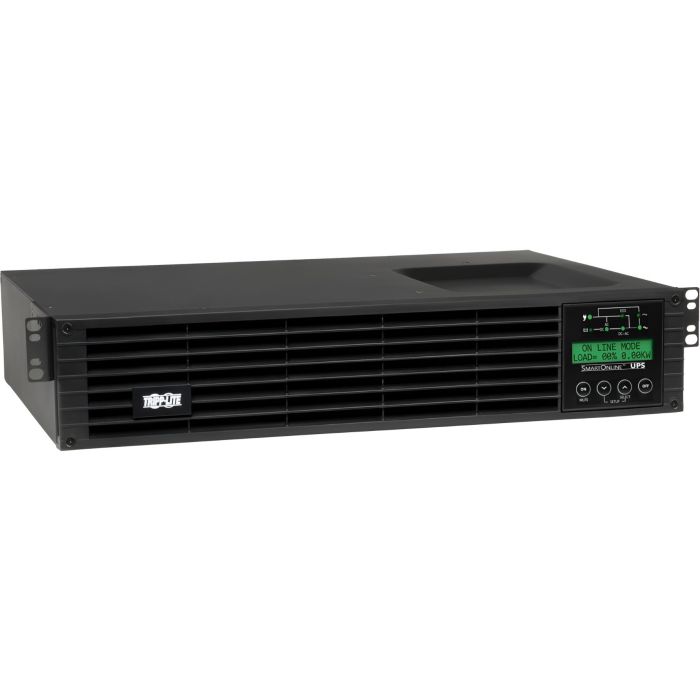

Tripp Lite SmartOnline UPS 3000VA 2700W LCD Double Conversion, SU3000RTXLCD2U - Refurbished

Rated input current (Maximum Load)

24A

Nominal Input Voltage(s) Supported

100V AC; 110V AC; 115V AC; 120V AC; 127V AC

Nominal Input Voltage Description

120V factory default

UPS Input Connection Type

Input Circuit Breakers

24A

UPS Input Cord Length (ft.)

10

UPS Input Cord Length (m)

3.1

Recommended Electrical Service

20A 120V

Input Phase

Single-Phase

Output Volt Amp Capacity (VA)

3000

Output Capacity (kVA)3

Output Watt Capacity (Watts)

2700

Output kW Capacity (kW)

2.7

Output Capacity Details

ON LINE MODE: Maximum output capacity is reduced to 2430W (115V), 2295W (110V) and 2160W (100V);
FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation
/ conversion mode (127/120V 1890 watts / 115V 1701 watts / 110V 1606 watts / 100V 1512 watts).
OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150%
load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and
frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE
bypass limits)

Power Factor

0.9

Crest Factor

3:1

Nominal Voltage Details

120V factory-default nominal voltage

Frequency Compatibility

50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion

Frequency Compatibility Details

ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output
matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds
+/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz.
FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency
input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY
MODE: Output is regulated to +/-0.05Hz.

Output Voltage Regulation (Line Mode)

+/- 2%

Output Voltage Regulation (Economy Line Mode)

+/- 10%

Output Voltage Regulation (Battery Mode)

+/- 3%

Load Management Receptacles

Two switchable four-outlet load banks

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

100V; 110V; 115V; 120V; 127V

Output Receptacles

Individually Controllable Load Banks

Yes

Battery Type

Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.)

4 min. (2700w)

Half Load Runtime (min.)

11.3 min. (1350w)

Expandable Battery Runtime

Extended runtime supported via optional external battery packs

Expandable Runtime

Yes

Expandable Runtime Description

Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details

External Battery Pack Compatibility

 BP72V15-2U  (limit 1);  BP72V28RT-3U  (multi-pack compatible);  BP72V18-2US  (multi-pack compatible)

DC System Voltage (VDC)

72

Battery Recharge Rate (Included Batteries)

Less than 3 hours recharge to 90% (typical, full load discharge)

Battery Access

Front panel battery access

Internal UPS Replacement Battery Cartridge

RBC72S

Battery Replacement Description

Hot-swappable, user replaceable batteries

Voltage Regulation Description

Online, double-conversion power conditioning maintains 2% output voltage regulation during brownouts and overvoltages

Overvoltage Correction

Corrects overvoltages to 150V (0-100% load)

Undervoltage Correction

Corrects undervoltages to 90V at full load (90V at 100V nominal)

Severe Undervoltage Correction

Corrects brownouts to 70V (70% load) & 55V (33% load)

Front Panel LCD Display

Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options

Switches

2 switches control off/on power status and alarm-cancel operation; 2 additional scroll-down and scroll-up / select options enable LCD status viewing and configuration options

Alarm Cancel Operation

Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Audible Alarm

Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

LED Indicators

7 front panel LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, eco mode operation, bypass mode operation and AC output status

UPS AC Suppression Joule Rating

570 J

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

Primary Form Factor

Cooling Method

Installation Form Factors Supported
with Included Accessories

Installation Form Factors Supported with Optional Accessories

Minimum Required Rack Depth with External Battery Pack (cm)

Minimum Required Rack Depth with External Battery Pack (in.)

Minimum Required Rack Depth without External Battery Pack (cm)

Minimum Required Rack Depth without External Battery Pack (in.)

Optional Mounting Accessory Notes

Primary UPS Depth (mm)

Primary UPS Height (mm)

86

Primary UPS Width (mm)

439

Rack Height

2U

Shipping Dimensions (hwd / cm)

23.11 x 61.21 x 100.33

Shipping Dimensions (hwd / in.)

9.10 x 24.10 x 39.50

Shipping Weight (kg)

41.73

Shipping Weight (lbs.)

92.00

UPS Housing Material

Steel

UPS Power Module Dimensions (hwd, in.)

8.64 x 43.94 x 64.77

UPS Power Module Dimensions (hwd, in.)

3.4 x 17.3 x 25.5

UPS Power Module Weight (kg)

31.98

UPS Power Module Weight (lbs.)

70.5

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

801

AC Economy Mode BTU / Hr. (Full Load)

188

Battery Mode BTU / Hr. (Full Load)

1626

AC Economy Mode Efficiency Rating (100% Load)

98%

Audible Noise

50 dBA at 1m front side

Operating Elevation (m)

Up to 3000m

Network Management Cards

SNMPWEBCARD;  TLNETCARD ;  WEBCARDLX ;  MODBUSCARD ;  RELAYIOCARD

Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert

Communications Cable

USB and DB9 cabling included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network Management Card Description

Network management card Optional

Communications Interface

Contact closure; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
