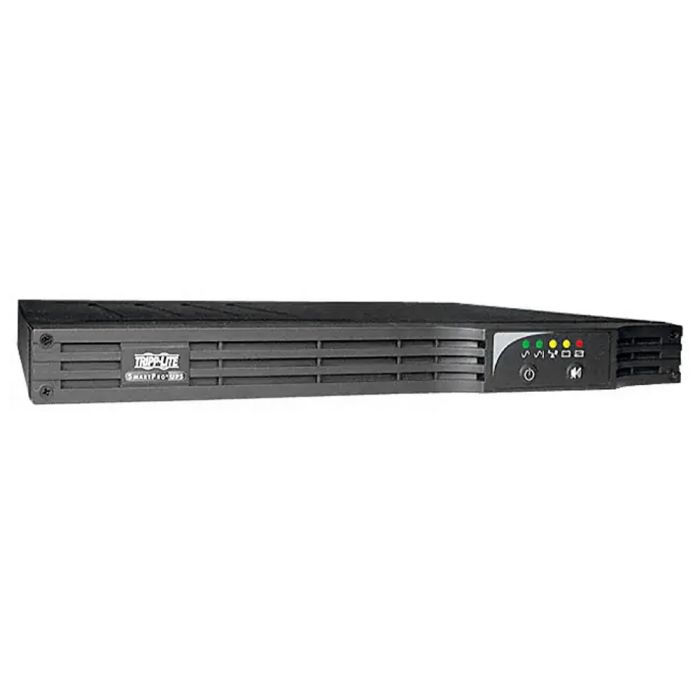

Tripp Lite SmartPro 1000VA 800W RM 1U 120V 15A Output: (6)5-15, SMART1000RM1U - Refurbished
Tripp Lite SmartPro UPS 1000VA 800W Rackmount 1U 120V - 15A
Model: SMART1000RM1U
Input: NEMA 5-15P (120V - 15A Circuit)
Output: (6) NEMA 5-15R
Line-Interactive UPS - Pure Sine Wave Output
(2) Switchable Load Banks for Power Management
USB, DB9 Serial & EPO Communications
Optional Network Management Card
New Batteries, Refurbished UPS
1 Year Warranty Included
$349.99
In stock
Manufacturer: Tripp Lite / Eaton
Model: Tripp Lite SmartPro UPS 1000VA 800W RM 1U 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMART1000RM1U
Maximum Output: 800W / 1000VA
Typical Backup Time at Half Load: 14 Minutes (400 Watts)
Typical Backup Time at Full Load: 4 Minutes (800 Watts)
Input: NEMA 5-15P, 120V / 15A Circuit
Output: (6) NEMA 5-15R
Topology: Line-Interactive
Output Waveform: Pure Sine Wave on Battery
Extended Runtime: No
Network Management: Optional Network Management Card
Communications: USB, DB9 Serial & EPO
Form Factor: Rackmount 1U
Warranty: 1 Year Full Replacement Warranty
Â
Â
Tripp Lite SmartPro 1000VA 800W RM 1U 120V SMART1000RM1U - User Manual
Â
Â
Â
SMART1000RM1U - Tripp Lite SmartPro 1000VAÂ Specifications:
Â
| Main | Â | ||
| Manufacturer | Tripp Lite / Eaton | ||
| Product Family | SmartPro | ||
| Model | SMART1000RM1U | ||
| Product Type | Uninterruptible Power Supply (UPS) | ||
| Power Capacity | 1000VA / 800W | ||
| Output Power Factor | 0.8 | ||
| Main Input Voltage | 120V AC | ||
| Main Output Voltage | 120V AC | ||
| Topology | Line-Interactive | ||
| Output Waveform | Sine Wave / Pure Sine Wave on Battery | ||
| Form Factor | Rackmount | ||
| Rack Height | 1U | ||
| Input Phase | Single-Phase | ||
| Condition | New Batteries, Refurbished UPS | ||
| Warranty | 1 Year Full Replacement Warranty | ||
| Â | Â | ||
| Input | Â | ||
| Nominal Input Voltage | 120V AC | ||
| Supported Input Voltage | 120V AC | ||
|
UPS Input Connection Type |
|
||
| Rated Input Current at Maximum Load | 9A | ||
| Input Circuit Breaker | 15A | ||
| Recommended Electrical Service | 15A, 120V | ||
| Input Phase | Single-Phase | ||
| Input Cord Length | 10 ft (3.05 m) | ||
| Â | Â | ||
| Output | Â | ||
| Output Capacity | 1000VA / 800W | ||
| Output Capacity | 1.0kVA / 0.8kW | ||
| Output Power Factor | 0.8 | ||
| Nominal Output Voltage | 120V AC | ||
| Selectable Output Voltages | 110V / 115V / 120V | ||
|
Output Receptacles |
|
||
| Total Output Receptacles | 6 | ||
| Output Frequency | 60 Hz | ||
| Output Voltage Regulation - Line Mode | -21% / +8% | ||
| Output Voltage Regulation - Battery Mode | ±5% | ||
| AC Mode Waveform | Sine Wave | ||
| Battery Mode Waveform | Pure Sine Wave | ||
| Load Management | Two Switchable Single-Outlet NEMA 5-15R Load Banks | ||
| Controllable Load Banks | Yes | ||
| Â | Â | ||
| Voltage Regulation | Â | ||
| Automatic Voltage Regulation (AVR) | Yes | ||
| AVR Input Range | 83–147V | ||
| Overvoltage Correction | Input 128–147V reduced by 12% | ||
| Undervoltage Correction | Input 83–107V boosted by 14% | ||
| Battery Usage During AVR | AVR corrects voltage without switching to battery when input remains within supported correction range | ||
| Â | Â | ||
| Batteries & Runtime | Â | ||
| Battery Type | Valve Regulated Lead Acid (VRLA) | ||
| Replacement Battery | RBC69-1U | ||
| DC System Voltage | 24VDC | ||
| Typical Runtime at Half Load | 14 Minutes (400W) | ||
| Typical Runtime at Full Load | 4 Minutes (800W) | ||
| Typical Recharge Time | 4.5 Hours from 10% to 90% after full-load discharge | ||
| Battery Access | Front Panel Battery Access Door | ||
| Battery Replacement | Hot-Swappable, User-Replaceable | ||
| Expandable Runtime | No | ||
| External Battery Pack Support | No | ||
| Battery Condition | New Batteries | ||
| Â | Â | ||
| Communications & Management | Â | ||
| Network Management Card | Optional | ||
| Network Management Slot | Yes - Slot for Optional SNMP/Web Network Management Interface | ||
| Compatible Legacy Network Cards | SNMPWEBCARD, TLNETCARD, WEBCARDLX | ||
| Network Monitoring | Detailed UPS and Site Power Monitoring with Compatible Network Management Card | ||
| Local Monitoring | Supported | ||
| USB Port | Yes | ||
| USB Interface | HID Enabled | ||
| Serial Port | DB9 Serial | ||
| Emergency Power Off (EPO) | Yes | ||
| Communication Interfaces | USB, DB9 Serial, EPO, Network Management Expansion Slot | ||
| USB Cable | Included | ||
| DB9 Cable | Included | ||
| EPO Cable | Included | ||
| PowerAlert Software | Compatible for Local UPS Monitoring and Management | ||
| WatchDog Compatibility | Yes | ||
| WatchDog Functions | Application, Operating System and Hard-Reboot Restart Support | ||
| Remote Network Management | Available with Optional Compatible Network Management Card | ||
| Remote UPS Monitoring | Available with Optional Compatible Network Management Card | ||
| Remote Load Control | Supported through Switchable Load Banks with Appropriate Management Configuration | ||
| Â | Â | ||
| User Interface, Alerts & Controls | Â | ||
| Front Panel Interface | LED Status Indicators and Pushbutton Controls | ||
| LED Indicators | 5 LEDs | ||
| LED Status Functions | Line Power, Battery Power, Overload, Voltage Regulation and Low/Replace Battery | ||
| Control Switches | 2 | ||
| Power Control | On / Off | ||
| Self-Test Control | Yes | ||
| Alarm Cancel | Yes | ||
| Audible Alarm | Yes | ||
| Power Failure Alarm | Yes | ||
| Overload Alarm | Yes | ||
| Low Battery Alarm | Yes | ||
| Alarm Silence | Power-Fail Alarm Can Be Silenced Using Alarm-Cancel Control | ||
| Â | Â | ||
| Power Management Features | Â | ||
| Automatic Voltage Regulation | Yes | ||
| Battery Backup | Yes | ||
| Pure Sine Wave Battery Output | Yes | ||
| Switchable Load Banks | (2) Single-Outlet Load Banks | ||
| Load Bank Control | Yes | ||
| Network Management Expansion | Yes | ||
| WatchDog Restart Support | Yes | ||
| Emergency Power Off | Yes | ||
| Hot-Swappable Batteries | Yes | ||
| Â | Â | ||
| Surge Protection & Filtering | Â | ||
| Surge Energy Rating | 450 Joules | ||
| AC Suppression Response Time | Instantaneous | ||
| EMI / RFI Noise Suppression | Yes | ||
| Â | Â | ||
| Physical | Â | ||
| Primary Form Factor | Rackmount | ||
| Rack Height | 1U | ||
| Cooling Method | Fan | ||
| Housing Material | Steel | ||
| Product Height | 1.75 in (4.44 cm) | ||
| Product Width | 17.5 in (44.45 cm) | ||
| Product Depth | 16.75 in (42.54 cm) | ||
| Product Weight | 32 lb (14.51 kg) | ||
| Minimum Required Rack Depth | 19.75 in (50.16 cm) | ||
| Included Mounting Support | Front-Rail Installation in 2-Post or 4-Post Racks | ||
| Supported Installation with Included Hardware | 2-Post 19-Inch Rackmount, 2-Post Front Mount, 4-Post 19-Inch Rackmount | ||
| Optional Full-Depth Rail Kit | 4POSTRAILKIT1U | ||
| Optional Short-Depth Rail Kit | 4POSTRAILKITWM | ||
| Vertical Installation | Supported | ||
| Â | Â | ||
| Environmental | Â | ||
| Operating Temperature | 32–104°F (0–40°C) | ||
| Storage Temperature | 5–122°F (-15–50°C) | ||
| Relative Humidity | 0–95%, Non-Condensing | ||
| Audible Noise | 45 dBA Maximum at 1 m from Front | ||
| AC Mode Efficiency at Full Load | 99% | ||
| AC Mode Heat Output at Full Load | 39 BTU/hr | ||
| Battery Mode Heat Output at Full Load | 1157 BTU/hr | ||
| Â | Â | ||
| Conformance | Â | ||
| CSA | Certified | ||
| UL | UL 1778 | ||
| NOM | Certified | ||
| FCC | FCC Class A | ||
| RoHS | Compliant | ||
| TAA | Compliant | ||
| Â | Â | ||
| Condition & Warranty | Â | ||
| UPS Condition | Refurbished | ||
| Battery Condition | New Batteries | ||
| Replacement Battery | RBC69-1U | ||
| Warranty | 1 Year Full Replacement Warranty |
