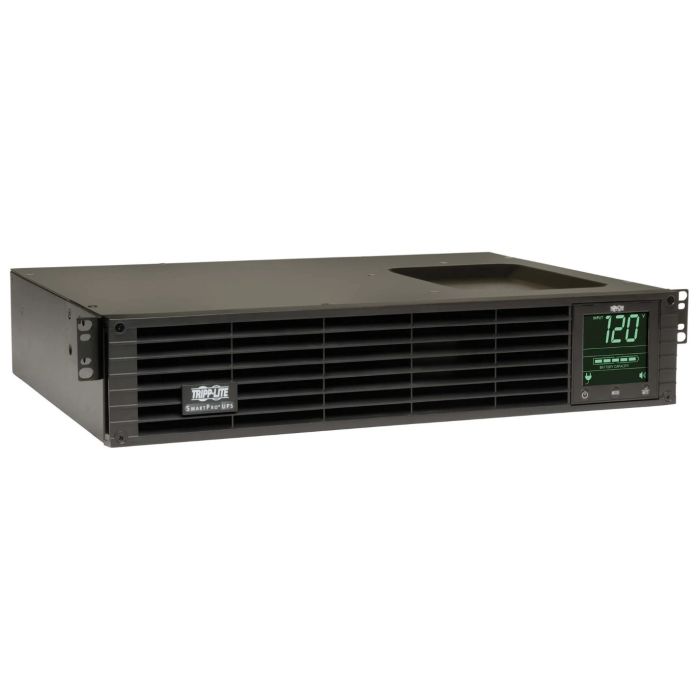

Tripp Lite SmartPro 1500VA 1350W LCD RM 2U 120V Output:(8)5-15R SMART1500RM2U - Refurbished

Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS 1500VA 1350W, RM, 2U, 15A, 120V
Part Number: SMART1500RM2U
Condition: New Batteries, Refurbished UPS
Maximum Output: 1350W / 1500VA
Typical Backup Time at Half Load: 13 Minutes (675W)
Typical Backup Time at Full Load: 4.5 Minutes (1350W)
Input: NEMA 5-15P, 120V AC, 15A, 10 ft Power Cord
Output: (8) NEMA 5-15R
Topology: Line-Interactive
Output Waveform: Pure Sine Wave
Automatic Voltage Regulation: Boost and Buck AVR
External Battery Pack Support: No
Display: Multifunction LCD
Communications: USB, DB9 Serial, EPO and Optional Network Management Slot
Network Management: Optional SNMPWEBCARD, TLNETCARD or WEBCARDLX
Form Factor: Rackmount, 2U; Optional Tower Installation
Warranty: 1 Year Full Replacement Warranty

Tripp Lite SmartPro 1500VA 1350W RM 120V SMART1500RM2U - User Manual

SMART1500RM2U - Tripp Lite SmartPro 1500VA Specifications:

Main
Manufacturer	Tripp Lite
Brand	SmartPro
Part Number	SMART1500RM2U
Product Type	Uninterruptible Power Supply (UPS)
UPS Topology	Line-Interactive
Maximum Output Capacity	1500VA / 1350W
Power Factor	0.9
Nominal Input Voltage	120V AC
Nominal Output Voltage	120V AC
Input Connection	NEMA 5-15P
Output Connections	(8) NEMA 5-15R
Output Waveform	Pure Sine Wave on Battery
Primary Form Factor	Rackmount
Rack Height	2U
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty
Included	(1) SMART1500RM2U UPS with New Batteries
Additional Accessories	Not Included
Input
Rated Input Current at Maximum Load	12A
Nominal Input Voltage	120V AC
Input Plug	NEMA 5-15P
Input Circuit Breaker	15A
Input Cord Length	10 ft (3.1 m)
Recommended Electrical Service	15A, 120V
Input Phase	Single-Phase
AVR Operating Input Voltage Range	83–147V AC
Input Voltage Correction	Automatic Boost and Buck
Output
Output Capacity	1500VA
Output kVA Capacity	1.5 kVA
Output Watt Capacity	1350W
Output kW Capacity	1.35 kW
Rated Power Factor	0.9
Nominal Output Voltage	120V AC
Supported Output Voltages	110V, 115V, 120V
Nominal Output Voltage in Battery Mode	120V AC
Frequency Compatibility	60 Hz
Output Voltage Regulation – Line Mode	-21%, +8%
Output Voltage Regulation – Battery Mode	±5%
Output Waveform – AC Mode	Sine Wave
Output Waveform – Battery Mode	Pure Sine Wave
Total Output Receptacles	8
Output Receptacle Type	NEMA 5-15R
Load Management Receptacles	Two Switchable Two-Outlet NEMA 5-15R Load Banks
Individually Controllable Load Banks	Yes
Remote Outlet Switching	Supported Through Compatible Management Software
Batteries & Runtime
Battery Type	Sealed Lead-Acid
DC System Voltage	36V DC
Typical Backup Time at Half Load	13 Minutes (675W)
Typical Backup Time at Full Load	4.5 Minutes (1350W)
Internal Replacement Battery Cartridge	RBC93-2U
Battery Access	Front Panel Battery Access Door
Battery Replacement	Hot-Swappable
User-Replaceable Batteries	Yes, by Qualified Service Personnel
Battery Recharge Time	Less Than 4.5 Hours from 10% to 90%
Battery Self-Test	Supported
Battery Capacity Monitoring	Yes
Estimated Runtime Display	Yes
Replace Battery Indicator	Yes
External Battery Pack Support	No
Expandable Runtime	No
Compatible External Battery Pack	Not Applicable
Voltage Regulation
Automatic Voltage Regulation	Yes
AVR Operating Range	83–147V AC
Overvoltage Correction	Reduces Input Voltages Between 128V and 147V by 12%
Undervoltage Correction	Boosts Input Voltages Between 83V and 107V by 14%
Battery-Free Voltage Correction	Yes, Within AVR Operating Range
User Interface, Alerts & Controls
Front Panel Display	Multifunction LCD
LCD Input Voltage Monitoring	Yes
LCD Output Voltage Monitoring	Yes
LCD Load Percentage	Yes
LCD Load Wattage	Yes
LCD Battery Capacity	Yes
LCD Estimated Runtime	Yes
LCD Energy Consumption	kWh per Day
LCD AVR Event Monitoring	Yes
LCD Battery Event Monitoring	Yes
LCD Self-Test Function	Yes
LCD Alarm Configuration	Yes
LCD Brightness Adjustment	Yes
LCD Automatic Scroll	Yes
LCD Power Sensitivity Settings	Yes
Control Buttons	ON/OFF, MODE, ENTER/MUTE
Audible Alarm	UPS Startup, Power Failure, Low Battery, Overload, UPS Fault and Remote Shutdown
Alarm Mute	Yes
Surge Protection & Filtering
Surge Suppression Rating	570 Joules
Surge Suppression Response Time	Instantaneous
EMI/RFI Noise Filtering	Yes
Automatic Voltage Regulation	Yes
Input Circuit Breaker Protection	15A
Communications & Management
USB Communication	Yes, HID Enabled
Serial Communication	DB9 RS-232
Emergency Power Off (EPO)	Yes
Network Management Expansion Slot	Yes
Optional Network Management Cards	SNMPWEBCARD, TLNETCARD, WEBCARDLX
Optional Relay Interface Card	RELAYIOCARD
Network Management Card Included	No
SNMP Monitoring	Supported with Optional Compatible Card
Remote Network Management	Supported with Optional Compatible Card
Management Software	Tripp Lite PowerAlert
PowerAlert Local Monitoring	Supported
Automatic System Shutdown	Supported with Compatible Software
Remote Outlet Control	Supported
WatchDog Compatibility	Yes
Network UPS Tools (NUT) Compatibility	Yes
Communication Cables Included	No
Physical
Primary Form Factor	Rackmount
Optional Form Factor	Tower
Rack Height	2U
Housing Material	Steel
Cooling Method	Fan
Unit Height	3.45 in (87.6 mm)
Unit Width	17.3 in (439.4 mm)
Unit Depth	13.45 in (341.6 mm)
Unit Dimensions (H × W × D)	3.45 × 17.3 × 13.45 in
Unit Weight	46.5 lbs (21.09 kg)
Minimum Required Rack Depth	16.5 in (41.91 cm)
Shipping Height	8.70 in
Shipping Width	20.00 in
Shipping Depth	23.50 in
Shipping Dimensions (H × W × D)	8.70 × 20.00 × 23.50 in
Shipping Weight	58.50 lbs (26.54 kg)
Rackmount Installation	Supported
Optional 2-Post Rackmount Kit	2POSTRMKITWM
Optional 2–4 Post Front Rail Kit	UPSHDEARKIT
Optional 4-Post Short-Depth Rail Kit	4POSTRAILKITWM
Optional Tower Stand	2-9USTAND
Optional Wallmount Kit	2POSTRMKITWM
Mounting Rails Included	No
Other Mounting Accessories Included	No
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 122°F (-15°C to 50°C)
Relative Humidity	0–95%, Non-Condensing
AC Mode Thermal Dissipation at Full Load	267 BTU/hr
Battery Mode Thermal Dissipation at Full Load	1012 BTU/hr
AC Mode Efficiency at Full Load	95%
Audible Noise	45 dBA Maximum at 1 m, Front Side
Conformance & Warranty
Product Family	SmartPro
Output Waveform	Pure Sine Wave on Battery
FCC Compliance	FCC Part 15, Class A (Manual)
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty
Additional Accessories	No Other Accessories Included
