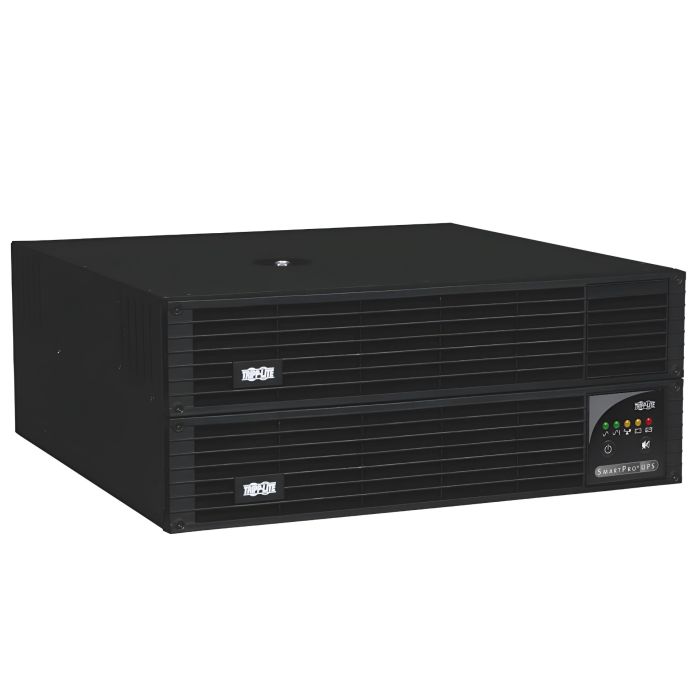

Tripp Lite SmartPro UPS 2200VA 1900W RM 4U 120V 20A SMART2200CRMXL - Refurbished
Tripp Lite SmartPro 2200VA 1900W RM 4U 120V
Model: SMART2200CRMXL
Input: NEMA 5-20P (120V - 20A)
Output: (4) NEMA 5-15R, (4) NEMA 5-15/20R
1900W / 2200VA Power Capacity
Line-Interactive UPS with Automatic Voltage Regulation (AVR)
Pure Sine Wave Output
Expandable Runtime with Optional External Battery Packs
Optional Network Management Support
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
$799.99
In stock
Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS 2200VA 1900W, Rackmount 4U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMART2200CRMXL
Maximum Output: 1900W / 2200VA
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Input: NEMA 5-20P, 120V, 20A
Output: (4) NEMA 5-15R + (4) NEMA 5-15/20R
Output Waveform: Pure Sine Wave
Typical Backup Time at Half Load: 14.3 Minutes (950W)
Typical Backup Time at Full Load: 4 Minutes (1900W)
Expandable Runtime: Yes, with Compatible External Battery Packs
Warranty: 1 Year Full Replacement Warranty
Description: The Tripp Lite SMART2200CRMXL is a 2200VA / 1900W line-interactive UPS with AVR and sine-wave output, designed for servers, networking equipment, and other critical systems. It features a NEMA 5-20P input and (8) output receptacles: (4) 5-15R and (4) 5-15/20R. USB and RS-232 communications, EPO, optional network management, and controllable load banks provide flexible monitoring and control. Extended runtime is supported with compatible 48V external battery packs, including BP48V24-2U, BP48V27-2US, and BP48V60RT-3U.
Â
Â
Tripp Lite SmartPro 2200VA 1900W RM 120V SMART2200CRMXL - User Manual
Â
Â
SMART2200CRMXL - Tripp Lite SmartPro 2200VAÂ Specifications:
| Main | Â | ||||
| Manufacturer | Tripp Lite | ||||
| Model | SMART2200CRMXL | ||||
| Product Family | SmartPro | ||||
| UPS Topology | Line-Interactive | ||||
| Form Factor | Rackmount | ||||
| Rack Height | 4U | ||||
| Rated Power Capacity | 2200VA / 1900W | ||||
| Power Factor | 0.86 | ||||
| Nominal Input Voltage | 120V AC | ||||
| Nominal Output Voltage | 110V / 115V / 120V | ||||
| Input Plug | NEMA 5-20P | ||||
| Output Receptacles | (4) NEMA 5-15R, (4) NEMA 5-15/20R | ||||
| Output Waveform | Pure Sine Wave | ||||
| Automatic Voltage Regulation (AVR) | Yes | ||||
| Expandable Runtime | Yes | ||||
| Condition | New Batteries, Refurbished UPS | ||||
| Warranty | 1 Year Full Replacement Warranty | ||||
| Â | Â | ||||
| Input | Â | ||||
| Rated Input Current at Maximum Load | 16A | ||||
| Nominal Input Voltage | 120V AC | ||||
|
UPS Input Connection Type |
|
||||
| Input Circuit Breaker | 20A | ||||
| Recommended Electrical Service | 20A / 120V | ||||
| Input Phase | Single-Phase | ||||
| Input Cord Length | 10 ft (3.1 m) | ||||
| AVR Input Operating Range | 83–145V | ||||
| Â | Â | ||||
| Output | Â | ||||
| Output Volt-Amp Capacity | 2200VA | ||||
| Output Capacity | 2.20kVA | ||||
| Output Watt Capacity | 1900W | ||||
| Output kW Capacity | 1.90kW | ||||
| Power Factor | 0.86 | ||||
| Nominal Output Voltage | 110V / 115V / 120V | ||||
| Nominal Voltage in Battery Mode | 120V | ||||
| Frequency Compatibility | 60Hz | ||||
| Output Voltage Regulation – Line Mode | -18% / +8% | ||||
| Output Voltage Regulation – Battery Mode | ±5% | ||||
| AC Mode Waveform | Sine Wave | ||||
| Battery Mode Waveform | Pure Sine Wave | ||||
|
Output Receptacles |
|
||||
| Total Output Receptacles | 8 | ||||
| Load Management Receptacles | Three Switchable Single-Outlet 5-15R Load Banks | ||||
| Individually Controllable Load Banks | Yes | ||||
| Â | Â | ||||
| Battery & Runtime | Â | ||||
| Battery Type | Valve-Regulated Lead-Acid (VRLA) | ||||
| DC System Voltage | 48V DC | ||||
| Internal Replacement Battery Cartridge | RBC94-2U (Quantity 2) | ||||
| Battery Access | Front-Panel Battery Access Door | ||||
| Battery Replacement | Hot-Swappable, User-Replaceable | ||||
| Recharge Time | Less than 3.6 Hours from 10% to 90% | ||||
| Expandable Runtime | Yes | ||||
| External Battery Pack Support | Yes | ||||
| Compatible External Battery Pack | BP48V24-2U – Limit 1 | ||||
| Additional Compatible Battery Pack | BP48V27-2US – Multi-Pack Compatible | ||||
| Additional Compatible Battery Pack | BP48V60RT-3U – Multi-Pack Compatible | ||||
| Â | Â | ||||
| Voltage Regulation | Â | ||||
| Voltage Regulation Type | Automatic Voltage Regulation (AVR) | ||||
| AVR Operating Range | 83–145V | ||||
| Overvoltage Correction | 127–145V Reduced by 12% | ||||
| Undervoltage Correction | 92–107V Boosted by 14% | ||||
| Severe Undervoltage Correction | 83–95V Boosted by 24% | ||||
| Â | Â | ||||
| User Interface, Alerts & Controls | Â | ||||
| Control Switches | Power On/Off and Alarm Cancel/Self-Test | ||||
| Charger Controls | Rear-Panel Low/High Charger Settings | ||||
| Alarm Cancel | Yes | ||||
| Audible Alarm | Yes | ||||
| Power Failure Alarm | Yes | ||||
| Overload Alarm | Yes | ||||
| Low Battery Alarm | Yes | ||||
| LED Indicators | 5 | ||||
| Line Power Indicator | Yes | ||||
| Battery Power Indicator | Yes | ||||
| Overload Indicator | Yes | ||||
| Voltage Regulation Indicator | Yes | ||||
| Low/Replace Battery Indicator | Yes | ||||
| Â | Â | ||||
| Surge & Noise Suppression | Â | ||||
| AC Suppression Rating | 570 Joules | ||||
| AC Suppression Response Time | Instantaneous | ||||
| EMI / RFI Noise Suppression | Yes | ||||
| Â | Â | ||||
| Communications & Management | Â | ||||
| USB Communication | Yes | ||||
| USB HID | Supported | ||||
| Serial Communication | Yes | ||||
| Serial Interface | DB9 | ||||
| Emergency Power Off (EPO) | Yes | ||||
| Network / Accessory Slot | Yes | ||||
| Network Management Card | Optional | ||||
| Remote Network Monitoring | Supported with Optional Network Card | ||||
| Remote Network Management | Supported with Optional Network Card | ||||
| SNMP / Web Management | Supported with Compatible Optional Network Card | ||||
| Compatible Network Management Card | SNMPWEBCARD | ||||
| Compatible Network Management Card | WEBCARDLX | ||||
| Compatible Relay / Contact Closure Card | RELAYIOCARD | ||||
| PowerAlert Software | Supported | ||||
| WatchDog Compatibility | Supported | ||||
| Automatic OS Shutdown | Supported with Compatible Communications / Software | ||||
| Communications Interface | USB (HID), DB9 Serial, EPO, SNMP/Web Accessory Slot | ||||
| Â | Â | ||||
| Physical | Â | ||||
| Primary Form Factor | Rackmount | ||||
| Rack Height | 4U | ||||
| Cooling Method | Fan | ||||
| Housing Material | Steel | ||||
| UPS Height | 6.89 in (17.50 cm / 175 mm) | ||||
| UPS Width | 17.30 in (43.94 cm / 439 mm) | ||||
| UPS Depth | 17.80 in (45.21 cm / 452 mm) | ||||
| UPS Weight | 100.3 lb (45.50 kg) | ||||
| Minimum Rack Depth without External Battery Pack | 22.8 in | ||||
| Included Mounting Accessory | 2POSTRMKITWM | ||||
| Included Installation Form Factor | 2-Post 19-Inch Rackmount | ||||
| Optional 4-Post Full-Depth Rack Kit | 4POSTRAILKIT | ||||
| Optional 4-Post Short-Depth Rack Kit | 4POSTRAILKITWM | ||||
| Optional Tower Stand | 2-9USTAND | ||||
| Shipping Dimensions | 14.00 × 23.00 × 23.50 in (35.56 × 58.42 × 59.69 cm) | ||||
| Shipping Weight | 124 lb (56.25 kg) | ||||
| Â | Â | ||||
| Environmental | Â | ||||
| Operating Temperature | 32–104°F (0–40°C) | ||||
| Storage Temperature | 5–122°F (-15–50°C) | ||||
| Relative Humidity | 0–95%, Non-Condensing | ||||
| AC Mode Efficiency at 100% Load | 97% | ||||
| AC Mode Heat Output at Full Load | 242 BTU/hr | ||||
| Battery Mode Heat Output at Full Load | 885 BTU/hr | ||||
| Audible Noise | 45 dBA Maximum at 1 m |
