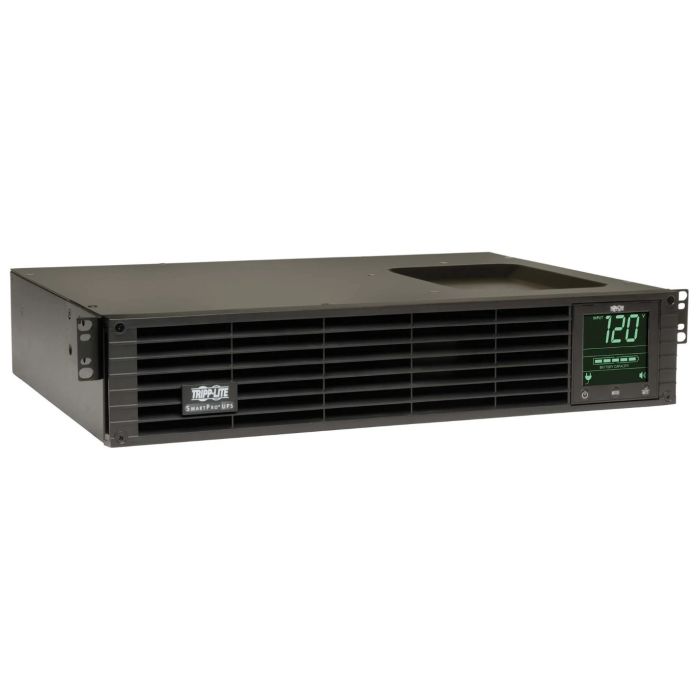

Tripp Lite SmartPro 2200VA 1920W RM 2U 120V 20A LCD SMART2600RM2U - Refurbished

Tripp Lite SmartPro 2200VA 1920W RM 2U LCD
Model: SMART2600RM2U
Input: NEMA 5-20P (120V - 20A)
Output: (4) NEMA 5-15R, (4) NEMA 5-15/20R, (1) NEMA L5-20R
Line-Interactive UPS - Pure Sine Wave Output

LCD Status Display
AVR (Automatic Voltage Regulation)

New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included

In stock

Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS 2200VA 1920W, RM, 20A, 120V LCD
Condition: New Batteries, Refurbished UPS
Part Number: SMART2600RM2U
Maximum output: 1920W / 2200VA
Typical backup time at half load: 12.9 minutes (960 Watts)
Typical backup time at full load: 4.6 minutes (1920 Watts)
Warranty: 1 Year Full Replacement Warranty

Description: The Tripp Lite SMART2600RM2U is a 2200VA / 1920W line-interactive UPS designed to provide reliable backup power and voltage regulation for servers, network switches, storage systems, telecommunications equipment, and other critical electronics. Featuring Automatic Voltage Regulation (AVR), pure sine wave output in battery mode, and nine output receptacles including (4) NEMA 5-15R, (4) NEMA 5-15/20R, and (1) NEMA L5-20R, the SMART2600RM2U delivers dependable power protection while maintaining compatibility with active PFC power supplies. The front-panel LCD display provides detailed operating information and configuration options, while optional network management cards enable advanced remote monitoring and control. Extended runtime support is available through compatible external battery packs. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty, the SMART2600RM2U is an excellent solution for rackmount IT and network environments.






Tripp Lite SmartPro 2200VA 1920W RM 2U 120V SMART2600RM2U - User Manual






SMART2600RM2U - Tripp Lite SmartPro 2200VA Specifications:

Key Features

UPS Topology Line Interactive
Form Factor Rackmount
Rack Height 2U
Capacity 2200VA / 1920W
Power Factor 0.87
Input Voltage 120V AC
Output Voltage 110V / 115V / 120V
Waveform (AC Mode) Sine Wave
Waveform (Battery Mode) Pure Sine Wave
Input Plug NEMA 5-20P
Output Receptacles (4) NEMA 5-15R
  (4) NEMA 5-15/20R
  (1) NEMA L5-20R
Extended Runtime Support Yes
AVR Automatic Voltage Regulation

Input
Nominal Input Voltage 120V AC
Rated Input Current 16A
Recommended Electrical Service 20A 120V
Input Plug Type NEMA 5-20P
Input Cord Length 10 ft (3.1 m)
Input Phase Single-Phase
Input Frequency 60 Hz

Output
Output Capacity 2200VA
Output Power 1920W
Output Voltage 110V / 115V / 120V
Frequency Compatibility 60 Hz
Output Voltage Regulation (Line Mode) +6% / -14%
Output Voltage Regulation (Battery Mode) ±5%
Output Receptacles (4) NEMA 5-15R
  (4) NEMA 5-15/20R
  (1) NEMA L5-20R
Individually Controllable Load Banks Yes
Load Management Receptacles Two Switchable Single-Outlet Load Banks
Output Circuit Breakers 15A Breaker Protects 5-15R
  20A Breaker Protects 5-15/20R
  L5-20R Unbreakered
Output Waveform (Battery Mode) Pure Sine Wave

Battery & Runtime
Battery Type Sealed Lead-Acid
DC System Voltage 48VDC
Runtime @ Full Load (1920W) 4.6 Minutes
Runtime @ Half Load (960W) 12.9 Minutes
Battery Recharge Time Less Than 4.5 Hours
Replacement Battery RBC94-2U
Battery Access Front Panel Battery Access Door
Hot-Swappable Batteries Yes
User Replaceable Batteries Yes
Expandable Runtime Yes
External Battery Pack Support Yes
Compatible Battery Packs BP48V24-2U (Limit 1)
  BP48V60RT-3U (Multi-Pack Compatible)
  BP48V27-2US (Multi-Pack Compatible)

Voltage Regulation
AVR Function Automatic Voltage Regulation
Input Voltage Range 83V – 145V
Overvoltage Correction 127V – 147V Reduced by 12%
Undervoltage Correction 95V – 104V Boosted by 12%
Severe Undervoltage Correction 83V – 94V Boosted by 24%

User Interface, Alerts & Controls
Front Panel Display LCD Information & Configuration Screen
Control Buttons OFF/ON, MODE, MUTE/ENTER
Alarm Cancel Operation Supported
Audible Alarm Yes
Alarm Types Startup
  Power Failure
  Low Battery
  Overload
  UPS Fault
  Remote Shutdown

Communications & Management
Communication Interfaces USB (HID Enabled)
  DB9 Serial
  EPO
SNMP/Web Card Slot Yes
Compatible Network Cards SNMPWEBCARD
  TLNETCARD
  WEBCARDLX
  RELAYIOCARD
Remote Monitoring Supported
UPS Status Monitoring Supported
Site Power Monitoring Supported
PowerAlert Software Supported
WatchDog Compatibility Supported
Remote Shutdown Supported

Compliance
Input Phase Single-Phase
Network Management Card Optional
Remote Shutdown Supported
Condition Refurbished with New Batteries
Warranty 1 Year Full Replacement Warranty Included

Surge Protection & Filtering
Surge Energy Rating 570 Joules
Suppression Response Time Instantaneous
EMI / RFI Noise Filtering Yes

Physical
Primary Form Factor Rackmount
Rack Height 2U
Height 3.46 in (88 mm)
Width 17.32 in (440 mm)
Depth 19.46 in (494 mm)
Weight 64 lbs (29.03 kg)
Housing Material Steel
Cooling Method Fan
Minimum Rack Depth 24.46 in (62 cm)
Minimum Rack Depth with External Battery 26.46 in (67 cm)
Included Mounting Accessories None

Optional Mounting Accessories
Optional Tower Stand 2-9USTAND
Tower Installation Support Yes (Optional)
Optional 2-Post Rackmount Kit 2POSTRMKITWM
2-Post Rackmount Support Yes (Optional)
Optional Wall Mount Kit 2POSTRMKITWM
Wall Mount Support Yes (Optional)
Optional 4-Post Rail Kit 4POSTRAILKITWM
4-Post Short-Depth Rack Support Yes (Optional)
Supported Rack Depth with 4POSTRAILKITWM 14.5 to 23.5 in (368 to 597 mm)
Optional Front-Rail Mount Kit UPSHDEARKIT
Front-Rail-Only Rack Installation Yes (Optional)

Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature 5°F to 122°F (-15°C to 50°C)
Relative Humidity 0% to 95% Non-Condensing
AC Mode Heat Dissipation 250 BTU/hr
Battery Mode Heat Dissipation 980 BTU/hr
Efficiency at Full Load 96%
Audible Noise 45 dBA Maximum @ 1 Meter
