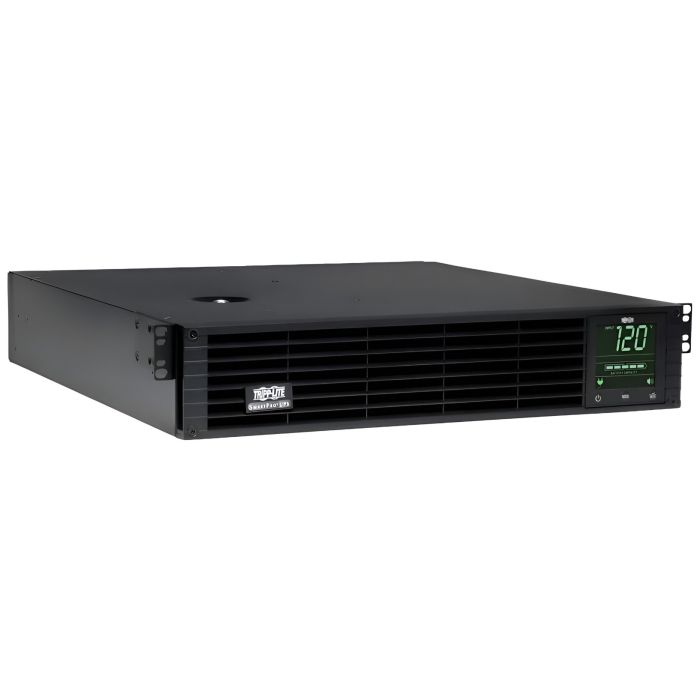

Tripp Lite SmartPro 2200VA 1920W 120V WEBCARDLX Pre-Install SMART2200RM2UN - Refurbished

Rated input current (Maximum Load)

16A (120V)

Nominal Input Voltage(s) Supported

120V AC

UPS Input Connection Type

Input Circuit Breakers

20A

UPS Input Cord Length (ft.)

10

UPS Input Cord Length (m)

3.1

Recommended Electrical Service

20A 120V

Input Phase

Single-Phase

Output Volt Amp Capacity (VA)

2200

Output Capacity (kVA)

2.2

Output Watt Capacity (Watts)

1920

Output kW Capacity (kW)

1.92

Power Factor

0.87

Nominal Voltage Details

120v nominal output in battery mode

Frequency Compatibility

60 Hz

Output Voltage Regulation (Line Mode)

-14%, +6%

Output Voltage Regulation (Battery Mode)

+/- 5%

Load Management Receptacles

Two switchable single-outlet load banks

Output AC Waveform (AC Mode)

Pure Sine wave

Output AC Waveform (Battery Mode)

Pure Sine wave

Nominal Output Voltage(s) Supported

110V; 115V; 120V

Output Receptacles

Individually Controllable Load Banks

Yes

Battery Type

Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.)

4.5 min. (1920W)

Half Load Runtime (min.)

12 min. (960w)

DC System Voltage (VDC)

48

Battery Recharge Rate (Included Batteries)

Less than 4.5 hours from 10% to 90% (typical, full load discharge)

Battery Access

Front panel battery access door

Internal UPS Replacement Battery Cartridge

RBC94-2U

Battery Replacement Description

Hot-swappable, user replaceable batteries

Expandable Runtime

No

Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Overvoltage Correction

Input voltages between 127 and 145 are reduced by 12%

Undervoltage Correction

Input voltages between 108 and 96 are boosted by 12%

Severe Undervoltage Correction

Input voltages between 83 and 95 are boosted by 24%

Front Panel LCD Display

Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Switches

3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset

Alarm Cancel Operation

Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Audible Alarm

Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

LED Indicators

Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).

UPS AC Suppression Joule Rating

570

UPS AC Suppression Response Time

Instantaneous

EMI / RFI AC Noise Suppression

Yes

Cooling Method

Installation Form Factors Supported with Optional Accessories - NOT INCLUDED

Minimum Required Rack Depth (cm)

Minimum Required Rack Depth
(inches)

Optional Mounting Accessory Notes

Primary Form Factor

Primary UPS Depth (mm)

Primary UPS Height (mm)

87

Primary UPS Width (mm)

440

Rack Height

2U

Shipping Dimensions (hwd / cm)

22.35 x 60.96 x 55.37

Shipping Dimensions (hwd / in.)

8.80 x 24.00 x 21.80

Shipping Weight (kg)

34.93

Shipping Weight (lbs.)

77.00

UPS Housing Material

Steel

UPS Power Module Dimensions (hwd, cm)

8.71 x 43.99 x 49.43

UPS Power Module Dimensions (hwd, in.)

3.43 x 17.32 x 19.46

UPS Power Module Weight (kg)

26.13

UPS Power Module Weight (lbs.)

57.6

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity

0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

306

Battery Mode BTU / Hr. (Full Load)

1157

AC Mode Efficiency Rating (100% Load)

96%

Audible Noise

45 dBA maximum, front side 1m

Network Management Cards

 WEBCARDLX

Network Monitoring Port Description

Pre-installed WEBCARDLX Network Management Card interface

PowerAlert Software

For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert

Communications Cable

Micro-USB, USB and DB9 cabling included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

EPO Port

RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems

SNMP Compatibility

SNMP V1, V2c, V3

Network UPS Tools Compatibility

NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Network Management Card Description

Network management card included
