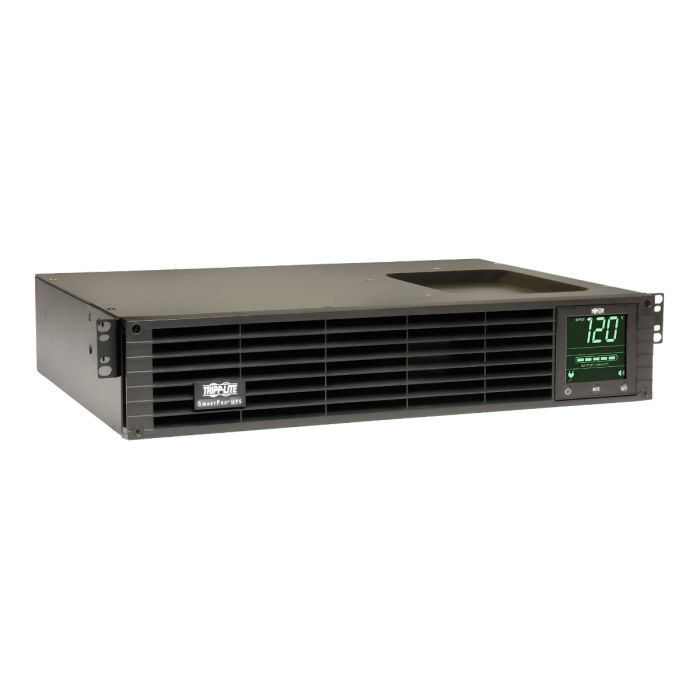

Tripp Lite SmartPro 3000VA 2.25kW RM 2U 120V LCD SMART3000RM2U - Refurbished
Tripp Lite SmartPro 3000VA 2250W Rackmount 2U 120V - 30A
Model: SMART3000RM2U
Input: NEMA L5-30P (120V - 30A)
Output: (8) NEMA 5-15/20R, (1) NEMA L5-30R
Line-Interactive UPS - Pure Sine Wave Output
Switchable Load Banks for Power Management
Extended Runtime - Supports Optional External Battery Packs
LCD Status & Configuration Display
USB, DB9 Serial & EPO Communications
Optional Network Management Card
New Batteries, Refurbished UPS
1 Year Warranty Included
$899.99
In stock
Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS 3000VA 2250W, RM, 2U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMART3000RM2U
Maximum Output: 2250W / 3000VA
Typical Backup Time at Half Load: 10 Minutes (1125 Watts)
Typical Backup Time at Full Load: 3 Minutes (2250 Watts)
Input: NEMA L5-30P, 120V / 30A
Output: (8) NEMA 5-15/20R, (1) NEMA L5-30R
Topology: Line-Interactive
Output Waveform: Pure Sine Wave
Form Factor: Rackmount 2U
Extended Runtime: Supports Optional External Battery Packs
Network Management: Expansion Slot Available for Optional Network Management Card
Communications: USB, DB9 Serial, EPO & Network Management Accessory Slot
Display: Front Panel LCD Status & Configuration Display
Warranty: 1 Year Full Replacement Warranty
Description: The Tripp Lite SmartPro SMART3000RM2U is a 3000VA / 2250W line-interactive rackmount 2U UPS designed for servers, networking equipment, telecom systems, and other critical electronics. It provides pure sine wave output, Automatic Voltage Regulation (AVR), (8) NEMA 5-15/20R outlets plus (1) NEMA L5-30R outlet, switchable load banks, LCD monitoring, USB and DB9 serial communications, EPO support, and an expansion slot for optional network management. Extended runtime is supported with compatible Tripp Lite external battery packs. The owner's manual confirms SMART3000RM2U as part of the 120V SmartPro 2U line-interactive sine-wave family. Tripp-Lite-Owners-Manual-805164 The manual also confirms USB/RS-232 communications and EPO connectivity. Tripp-Lite-Owners-Manual-805164 Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.
Â
Â
Tripp Lite SmartPro 3000VA 2250W RM 120V SMART3000RM2U - User Manual
Â
Â
SMART3000RM2U - Tripp Lite SmartPro 3000VAÂ Specifications:
| Main | Â | ||||
| Manufacturer | Tripp Lite | ||||
| Product Series | SmartPro | ||||
| Model | SMART3000RM2U | ||||
| Product Type | Uninterruptible Power Supply (UPS) | ||||
| Power Capacity | 3000VA / 2250W | ||||
| Output Capacity | 3.0kVA / 2.25kW | ||||
| Power Factor | 0.75 | ||||
| Topology | Line-Interactive | ||||
| Output Waveform | Pure Sine Wave | ||||
| Nominal Voltage | 120V | ||||
| Form Factor | Rackmount | ||||
| Rack Height | 2U | ||||
| Cooling Method | Fan | ||||
| Housing Material | Steel | ||||
| Â | Â | ||||
| Input | Â | ||||
| Nominal Input Voltage | 120V AC | ||||
|
UPS Input Connection Type |
|
||||
| Rated Input Current at Maximum Load | 24A | ||||
| Recommended Electrical Service | 30A / 120V | ||||
| Input Phase | Single-Phase | ||||
| Input Cord Length | 10 ft (3.1 m) | ||||
| AVR Input Operating Range | 83–145V | ||||
| Â | Â | ||||
| Output | Â | ||||
| Output Volt-Amp Capacity | 3000VA | ||||
| Output Capacity | 3.0kVA | ||||
| Output Watt Capacity | 2250W | ||||
| Output kW Capacity | 2.25kW | ||||
| Output Capacity with External Battery Packs | Reduced to 1600W Maximum | ||||
| Power Factor | 0.75 | ||||
| Nominal Output Voltage | 120V | ||||
| Supported Output Voltages | 110V / 115V / 120V | ||||
| Frequency Compatibility | 60 Hz | ||||
| Output Voltage Regulation - Line Mode | -14% / +6% | ||||
| Output Voltage Regulation - Battery Mode | ±5% | ||||
| AC Mode Waveform | Pure Sine Wave | ||||
| Battery Mode Waveform | Pure Sine Wave | ||||
|
Output Receptacles |
|
||||
| Total Output Receptacles | 9 | ||||
| Load Management Receptacles | Two Switchable Single-Outlet Load Banks | ||||
| Individually Controllable Load Banks | Yes | ||||
| Output Circuit Breakers | (2) 20A | ||||
| Circuit Breaker Protection | Each 20A Breaker Protects (4) NEMA 5-15/20R Outlets | ||||
| Remote Outlet / Load Bank Control | Supported through UPS Communications / Compatible Management Interface | ||||
| Â | Â | ||||
| Voltage Regulation | Â | ||||
| Automatic Voltage Regulation (AVR) | Yes | ||||
| AVR Operating Range | 83–145V | ||||
| Overvoltage Correction | 127–145V Input Reduced by 12% | ||||
| Undervoltage Correction | 96–108V Input Boosted by 12% | ||||
| Severe Undervoltage Correction | 83–95V Input Boosted by 24% | ||||
| Battery Conservation During AVR | Voltage Correction Without Battery Operation | ||||
| Â | Â | ||||
| Batteries & Runtime | Â | ||||
| Battery Type | Valve-Regulated Lead-Acid (VRLA) | ||||
| DC System Voltage | 48VDC | ||||
| Typical Backup Time at Half Load | 10 Minutes (1125W) | ||||
| Typical Backup Time at Full Load | 3 Minutes (2250W) | ||||
| Manufacturer Full-Load Runtime Specification | 3.5 Minutes (2250W) | ||||
| Expandable Runtime | Yes | ||||
| External Battery Connector | Yes | ||||
| External Battery Pack Support | Yes | ||||
| External Battery Pack BP48V24-2U | 18Ah - Limit (1) | ||||
| External Battery Pack BP48V27-2US | 27Ah - Multiple Packs Supported | ||||
| External Battery Pack BP48V60RT-3U | 42Ah - Multiple Packs Supported | ||||
| Output Derating with External Batteries | 1600W Maximum | ||||
| Replacement Battery Cartridge | RBC94-2U | ||||
| Battery Access | Front Panel Battery Access Door | ||||
| Battery Replacement | Hot-Swappable / User-Replaceable | ||||
| Battery Recharge Time | Less Than 4.5 Hours from 10% to 90% | ||||
| External Battery Configuration | Configurable through UPS External Battery Settings | ||||
| Â | Â | ||||
| Communications & Management | Â | ||||
| Network Management Card | Optional - Not Included | ||||
| Network Management Accessory Slot | Yes | ||||
| Accessory Slot Function | Supports Optional Remote Monitoring and Control Accessories | ||||
| Network Management Cards Listed for Model | SNMPWEBCARD, TLNETCARD, WEBCARDLX | ||||
| Relay Interface Card | RELAYIOCARD | ||||
| USB Port | Yes | ||||
| USB Interface | HID Enabled | ||||
| Serial Port | DB9 RS-232 | ||||
| Emergency Power Off (EPO) | Yes | ||||
| Communication Interfaces | USB, DB9 Serial, EPO, Network Management Accessory Slot | ||||
| Included Communications Cables | USB and DB9 | ||||
| Local UPS Monitoring | Supported | ||||
| PowerAlert Software | Supported | ||||
| UPS Operating Condition Monitoring | Supported | ||||
| AC Line Monitoring | Supported | ||||
| Input Voltage Monitoring | Supported | ||||
| Output Voltage Monitoring | Supported | ||||
| Load Monitoring | Supported | ||||
| Battery Status Monitoring | Supported | ||||
| Runtime Monitoring | Supported | ||||
| Event Monitoring | Supported | ||||
| Network Monitoring | Supported with Compatible Optional Network Management Card | ||||
| Remote Management | Supported with Compatible Optional Network Management Card | ||||
| Remote Load Control | Supported | ||||
| Remote Reboot | Supported | ||||
| PowerAlert Remote Outlet Control | Load Banks Can Be Remotely Switched On / Off | ||||
| WatchDog Compatibility | Supported | ||||
| WatchDog Application Restart | Supported | ||||
| WatchDog OS Restart | Supported | ||||
| WatchDog Hard-Reboot | Supported | ||||
| Network UPS Tools (NUT) | Compatible | ||||
| Automatic Shutdown | Supported through Compatible UPS Management Software | ||||
| Â | Â | ||||
| User Interface, Alerts & Controls | Â | ||||
| Front Panel Display | LCD Information and Configuration Screen | ||||
| Input Voltage Display | Yes | ||||
| Output Voltage Display | Yes | ||||
| Estimated Runtime Display | Yes | ||||
| Load Percentage Display | Yes | ||||
| Load Wattage Display | Yes | ||||
| Energy Consumption Display | kWh / Day | ||||
| Battery Capacity Display | Yes | ||||
| AVR Event Counter | Yes | ||||
| On-Battery Event Counter | Yes | ||||
| External Battery Status | Supported | ||||
| LCD Automatic Scroll | Configurable | ||||
| LCD Brightness | Configurable | ||||
| Power Sensitivity | Configurable | ||||
| Self-Test | User-Initiated Battery Self-Test | ||||
| Front Panel Controls | (3) Pushbutton Controls | ||||
| Power Control | On / Off | ||||
| Mode Selection | Yes | ||||
| Enter / Mute Control | Yes | ||||
| Alarm Cancel | Yes | ||||
| Silent Mode | Configurable | ||||
| Audible Alarm | Yes | ||||
| Power Failure Alarm | Yes | ||||
| Low Battery Alarm | Yes | ||||
| Overload Alarm | Yes | ||||
| UPS Fault Alarm | Yes | ||||
| Remote Shutdown Alarm | Yes | ||||
| Replace Battery Warning | Yes | ||||
| Â | Â | ||||
| Power Management Features | Â | ||||
| Switchable Load Banks | Yes | ||||
| Load Bank Quantity | (2) Switchable Single-Outlet Load Banks | ||||
| Remote Load Bank Switching | Supported | ||||
| Remote Reboot Capability | Supported | ||||
| Automatic Voltage Regulation | Yes | ||||
| Cold Start | Supported | ||||
| Battery Self-Test | Supported | ||||
| Power Sensitivity Adjustment | Supported | ||||
| External Battery Configuration | Supported | ||||
| Â | Â | ||||
| Physical | Â | ||||
| Primary Form Factor | Rackmount | ||||
| Rack Height | 2U | ||||
| UPS Height | 3.43 in (8.71 cm) | ||||
| UPS Width | 17.32 in (43.99 cm) | ||||
| UPS Depth | 19.46 in (49.43 cm) | ||||
| UPS Weight | 62.8 lb (28.49 kg) | ||||
| Housing Material | Steel | ||||
| Cooling Method | Fan | ||||
| Included Mounting Accessory | 4POSTRAILKIT | ||||
| Included Installation Type | 4-Post 19-Inch Rackmount | ||||
| Included Rail Adjustment Range | 20.5–36 in (521–914 mm) | ||||
| 2-Post Rackmount | Supported with Optional 2POSTRMKITWM | ||||
| Front-Rail Rackmount | Supported with Optional UPSHDEARKIT | ||||
| Short-Depth 4-Post Rackmount | Supported with Optional 4POSTRAILKITWM | ||||
| Tower Installation | Supported with Optional 2-9USTAND | ||||
| Wall Mounting | Supported with Optional 2POSTRMKITWM | ||||
| Minimum Rack Depth without External Battery Pack | 24.5 in (62 cm) | ||||
| Minimum Rack Depth with External Battery Pack | 26.5 in (67 cm) | ||||
| Â | Â | ||||
| Environmental | Â | ||||
| Operating Temperature | 32–104°F (0–40°C) | ||||
| Storage Temperature | 5–122°F (-15–50°C) | ||||
| Relative Humidity | 0–95%, Non-Condensing | ||||
| AC Mode Efficiency at 100% Load | 98% | ||||
| AC Mode Heat Output at Full Load | 189 BTU/hr | ||||
| Battery Mode Heat Output at Full Load | 1356 BTU/hr | ||||
| Audible Noise | 45 dBA Maximum at 1 m from Front | ||||
| Â | Â | ||||
| Surge Protection & Filtering | Â | ||||
| Surge Protection | Yes | ||||
| Surge Energy Rating | 570 Joules | ||||
| AC Suppression Response Time | Instantaneous | ||||
| EMI / RFI AC Noise Suppression | Yes | ||||
| Â | Â | ||||
| General | Â | ||||
| Rack / Tower Capability | Rackmount Standard; Tower Supported with Optional Stand | ||||
| Hot-Swappable Batteries | Yes | ||||
| User-Replaceable Batteries | Yes | ||||
| External Battery Capability | Yes | ||||
| EPO Support | Yes | ||||
| LCD Configuration | Yes | ||||
| Â | Â | ||||
| Conformance | Â | ||||
| FCC Compliance | FCC Part 15 Class A | ||||
| Application Environment | Commercial / IT Equipment | ||||
| Â | Â | ||||
| Condition & Warranty | Â | ||||
| UPS Condition | Refurbished | ||||
| Battery Condition | New Batteries | ||||
| Network Management Card | Optional - Not Included | ||||
| Warranty | 1 Year Full Replacement Warranty |
