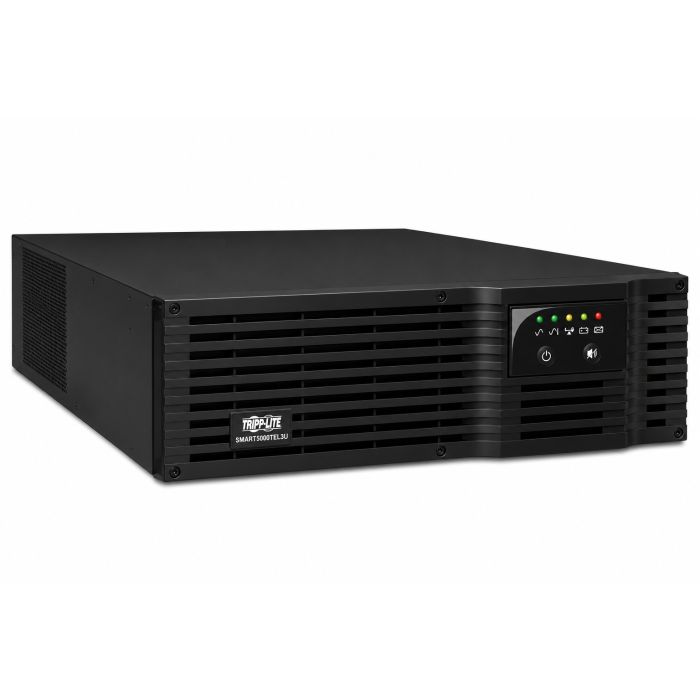

Tripp Lite SmartPro 2v SMART5000TEL3U 5000VA 3750W RM 3U 208V 30A - Refurbished

Tripp Lite SmartPro 5000VA / 3750W Line-Interactive UPS, Rack/Tower, 3U, 208V
Model: SMART5000TEL3U
Input: NEMA L6-30P, 208V, 30A Single-Phase
Output: (2) NEMA 5-15R, (2) NEMA L6-20R, (1) NEMA L6-30R
Pure Sine Wave Output with Automatic Voltage Regulation (AVR)
USB, DB9 Serial, EPO & Optional SNMP/Web Network Management Support
Hot-Swappable VRLA Batteries (New Batteries Installed)
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included

In stock

Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro 5000VA / 3750W Line-Interactive UPS, Rack/Tower, 3U, 208V
Condition: New Batteries, Refurbished UPS
Part Number: SMART5000TEL3U
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Waveform: Pure Sine Wave (Battery Mode)
Input: 208V AC, Single-Phase, NEMA L6-30P, 30A Service Recommended
Output: 3750W / 5000VA, (2) NEMA 5-15R, (2) NEMA L6-20R, (1) NEMA L6-30R
Typical Backup Time at Half Load: 20 Minutes (1875W)
Typical Backup Time at Full Load: 8.5 Minutes (3750W)
Communications: USB, DB9 Serial, Contact Closure, EPO, Slot for Optional SNMP/Web Management Card
Warranty: 1 Year Full Replacement Warranty Included

Description: The Tripp Lite SMART5000TEL3U SmartPro UPS delivers 5000VA / 3750W of line-interactive power protection for servers, network equipment, telecommunications systems, and other mission-critical applications. Featuring Automatic Voltage Regulation (AVR), pure sine wave output on battery, hot-swappable VRLA batteries, USB and DB9 communication ports, an EPO interface, and support for optional SNMP/Web network management cards, it provides reliable backup power, advanced power conditioning, and remote monitoring capabilities in a compact 3U rack/tower design.






Tripp Lite SmartPro 5000VA 3750W RM 208V SMART5000TEL3U - User Manual






SMART5000TEL3U - Tripp Lite SmartPro 5000VA Specifications:



General
Manufacturer Tripp Lite
Model SMART5000TEL3U
UPS Topology Line-Interactive
Waveform Pure Sine Wave (Battery Mode), Sine Wave (Line Mode)
Form Factor Rackmount / Tower Convertible
Rack Height 3U
Power Capacity 5000VA / 3750W (5kVA / 3.75kW)
Power Factor 0.75
Typical Applications Servers, Network Equipment, Telecommunications, Industrial Equipment
Energy Efficiency Up to 97% (Line Mode)
ENERGY STAR Qualified

Input
Nominal Input Voltage 208V AC
Input Voltage Range (AVR) 167–260V AC
Input Frequency 60 Hz
Input Phase Single-Phase
Rated Input Current 24A
Recommended Electrical Service 30A, 208V

UPS Input Connection Type

NEMA L6-30P

Input Cord Length 10 ft (3.1 m)
Input Circuit Breaker 15A

Output
Nominal Output Voltage 208V AC
Output Capacity 5000VA / 3750W
Output Frequency 60 Hz
Output Voltage Regulation (Line Mode) 208V & 120V (-6%, +20%)
Output Voltage Regulation (Battery Mode) ±5%
Output Waveform (Line Mode) Sine Wave
Output Waveform (Battery Mode) Pure Sine Wave

Output Receptacles

(2) NEMA 5-15R

(2) NEMA L6-20R

(1) NEMA L6-30R

120V Outlet Capacity 450W Maximum
Output Circuit Protection 20A Double-Pole Breaker (L6-20R), 5A Breaker (5-15R), L6-30R Unbreakered
Individually Switched Load Banks No

Battery & Runtime
Battery Type Valve-Regulated Lead Acid (VRLA)
DC Bus Voltage 48VDC
Battery Access Front Panel
Battery Replacement Hot-Swappable, User Replaceable
Internal Battery Cartridge (3) RBC94-3U
Typical Runtime @ Full Load 8.5 Minutes (3750W)
Typical Runtime @ Half Load 20 Minutes (1875W)
Expandable Runtime No
Recharge Time Less than 4 Hours (10%–90%)

Voltage Regulation (AVR)
AVR Technology Automatic Voltage Regulation
Overvoltage Correction 228–260V Reduced by 12%
Undervoltage Correction 167–194V Boosted by 12%
Battery Transfer Time 7 ms (AC to Battery), 1 ms (Battery to AC)
Low Voltage Transfer Point 167V
High Voltage Transfer Point 260V

User Interface & Controls
Front Panel Controls Power ON/OFF, Alarm Cancel, Self-Test
LED Indicators 5 Status LEDs
Audible Alarms Power Failure, Overload, Low Battery
Alarm Silence Yes
Cold Start Supported

Surge Protection
Surge Suppression Rating 1020 Joules
Response Time Instantaneous
EMI / RFI Noise Filtering Yes

Communications & Management
Communication Ports USB, DB9 Serial, DB9 Contact Closure, EPO
Expansion Slot Slot for Optional SNMP/Web Management Card
Compatible Network Cards WEBCARDLX, SNMPWEBCARD, TLNETCARD
Monitoring Software Tripp Lite PowerAlert Local
Remote Monitoring Yes
Remote Shutdown Yes
WatchDog Support Yes
Network Monitoring Detailed UPS & Site Power Monitoring

Physical
Form Factor Rackmount / Tower
Rack Height 3U
Cooling Fan
Housing Material Steel
Dimensions (H × W × D) 5.25 × 17.5 × 25 in (133 × 445 × 635 mm)
Net Weight 143.3 lb (65 kg)
Shipping Weight 182 lb (82.6 kg)
Minimum Rack Depth 30 in (762 mm)
Included Mounting 4-Post Rack Mount
Optional Mounting 2-Post Rack (2POSTRMKITHD), Tower (2-9USTAND)

Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature 5°F to 122°F (-15°C to 50°C)
Operating Humidity 0–95% Non-Condensing
Efficiency 97% (Line Mode @ Full Load)
Heat Dissipation (AC Mode) 366 BTU/hr
Heat Dissipation (Battery Mode) 1423 BTU/hr
Audible Noise 45 dBA @ 1 m

Features
Automatic Voltage Regulation (AVR) Yes
Intelligent Battery Management Yes
Hot-Swappable Batteries Yes
Remote Management Ready Yes (Optional Card Required)
Auto Probe Monitoring Supported (WEBCARDLX Required)
Green UPS Greater than 95% Efficiency
Grounding Lug Rear Panel

Compliance
Certifications ENERGY STAR®, UL1778, CSA, FCC Part 15 Class A

Warranty
Condition New Batteries, Refurbished UPS
Warranty 1 Year Full Replacement Warranty Included
