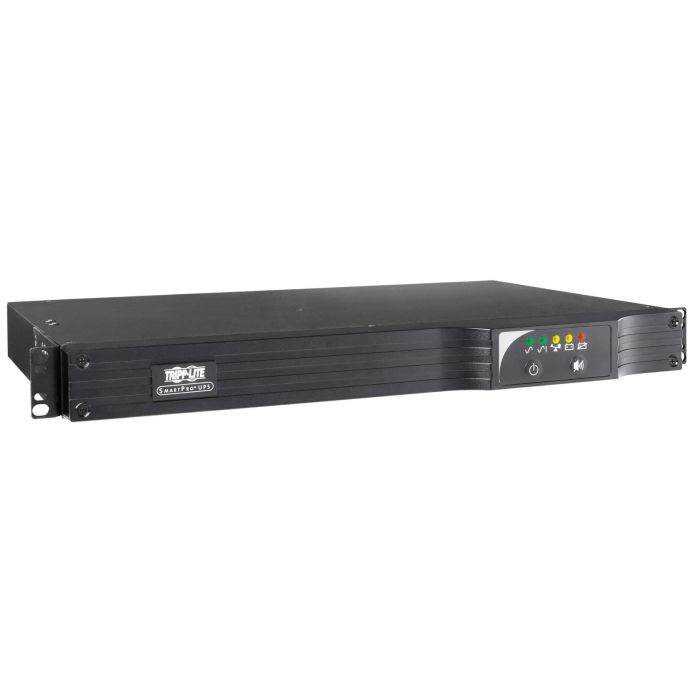

Tripp Lite Smart Pro UPS 500VA 300W 120V 15A Output: (6)5-15R SMART500RT1U - Refurbished

Manufacturer: Tripp Lite
Model: Tripp Lite Smart-Pro UPS 500VA 300W, RM, 1U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMART500RT1U
Maximum output: 300W / 500VA
Typical backup time at half load: 14.6 minutes (150 Watts)
Typical backup time at full load: 3.2 minutes (300 Watts)
Warranty: 1 year full replacement warranty

Description: The Tripp Lite SMART500RT1U is a compact 500VA / 300W line-interactive UPS designed for rackmount servers, networking equipment, telecommunications systems, and other critical electronics. Its low-profile 1U design supports both 2-post and 4-post rack installations as well as tower placement. The UPS provides 120V power through (6) NEMA 5-15R outlets, Automatic Voltage Regulation (AVR), USB and RS-232 communications, EPO connectivity, and an accessory slot for optional remote network management. It also supports remote outlet control through Tripp Lite PowerAlert software. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty. The manual specifically identifies SMART500RT1U as a SmartPro 1U intelligent line-interactive UPS

Tripp Lite SmartOnline 500VA 300W RM 120V SMART500RT1U - User Manual

SMART500RT1U - Tripp Lite SmartOnline 500VA Specifications:

Main
Manufacturer	Tripp Lite
Product Family	SmartPro
Model / Part Number	SMART500RT1U
Product Type	UPS Battery Backup
UPS Topology	Line-Interactive
Maximum Output	300W / 500VA
Power Factor	0.6
Nominal Input Voltage	120V AC
Nominal Output Voltage	120V AC
Input Phase	Single-Phase
Form Factor	Rackmount / Tower
Rack Height	1U
Condition	New Batteries, Refurbished UPS
Input
Nominal Input Voltage	120V AC
Input Voltage Range	90–139V AC
UPS Input Connection	NEMA 5-15P
Input Cord Type	Attached power cord
Input Cord Length	10 ft (3.1 m)
Rated Input Current at Maximum Load	10A
Input Circuit Breaker	10A
Recommended Electrical Service	15A / 120V
Input Phase	Single-Phase
Output
Output VA Capacity	500VA
Output Watt Capacity	300W
Output Power Factor	0.6
Nominal Output Voltage	120V
Output Current at Rated Load	4.2A at 120V
Output Frequency	60 Hz
Frequency Regulation	±0.05Hz when input frequency exceeds ±5Hz of nominal
Output Voltage Regulation - Line Mode	-14% / +16%
Output Voltage Regulation - Battery Mode	±5%
Output Waveform - Line Mode	Sine Wave
Output Waveform - Battery Mode	PWM Sine Wave
Total Output Receptacles	(6) NEMA 5-15R
Battery Backup / UPS Outlets	(5) NEMA 5-15R
Surge-Only Outlet	(1) NEMA 5-15R
Load Management Receptacle	(1) switchable NEMA 5-15R load bank
Individually Controllable Load Banks	Yes
Remote Outlet ON/OFF Control	Yes, for switchable outlet using PowerAlert
Remote Equipment Reboot	Yes, through switchable outlet control
Line-Mode Overload Capacity	120% for 5 minutes
Battery-Mode Overload Capacity	120% for 5 seconds
Batteries & Runtime
Battery Type	Valve-Regulated Lead-Acid (VRLA)
DC System Voltage	12V DC
Typical Backup Time at Half Load	14.6 minutes at 150W
Typical Backup Time at Full Load	3.2 minutes at 300W
Battery Recharge Rate	Less than 12 hours to 90%
Initial Full Runtime Charge	Approximately 24 hours before maximum battery runtime is available
Battery Access	Battery access door
Hot-Swappable Battery	Yes
User-Replaceable Battery	Yes
Replacement Battery - Series AG-03AA	RBC12V-1U
Replacement Battery - Earlier Versions	RBC62-1U
External Battery Pack Support	No
Expandable Runtime	No
Voltage Regulation
Automatic Voltage Regulation (AVR)	Yes
AVR Operating Range	90–139V AC
AVR Low-Voltage Operation	Maintains line-power operation with input voltage as low as approximately 90V AC
Undervoltage Correction	Input voltages between approximately 90V and 105V are boosted by 14%
Battery Conservation	AVR corrects applicable voltage fluctuations without switching to battery power
Communications & Management
Network Management	Optional
Network Management Card Included	No
Network Management Slot	Accessory slot for optional SNMP / Web network management card
Compatible Network Management Cards	SNMPWEBCARD55, WEBCARDLX
USB Communication	Yes
USB Interface	HID-enabled
Serial Communication	DB9 RS-232
EPO Port	Yes
Local UPS Monitoring	Yes
Local Management Interfaces	USB and DB9 RS-232
Power Management Software	Tripp Lite PowerAlert
UPS Operating Condition Monitoring	Yes
AC Line Power Monitoring	Yes
Automatic Computer Shutdown	Supported through PowerAlert
Remote Outlet Control	Yes, for controllable outlet
Remote Equipment Reboot	Yes
WatchDog Compatibility	Yes
WatchDog Application Restart	Supported
WatchDog Operating System Restart	Supported
WatchDog Hard-Reboot	Supported
Emergency Power Off	Supported through EPO port
User Interface, Alerts & Controls
User Interface	LED status and control panel
Control Switches	(2)
ON/OFF/STANDBY Control	Yes
MUTE/TEST Control	Yes
Alarm Cancel	Yes
Self-Test	Yes
Cold Start	Yes
LED Indicators	(5)
Power / Line Status Indicator	Yes
Voltage Correction Indicator	Yes
Output Load Level Indicator	Yes
Battery Charge Indicator	Yes
Battery Warning Indicator	Yes
Load Level Indication	Green / Yellow / Red indication for light, medium and overload conditions
Battery Charge Indication	Green / Yellow / Red indication of approximate battery charge
Audible Alarm	Yes
Power Failure Alarm	Yes
Overload Alarm	Yes
Low-Battery Alarm	Yes
Battery Replacement Warning	Yes
Alarm Silencing	Yes
Power Management Features
Switchable Outlet Bank	Yes
Unswitched Outlets	Yes
Software-Controlled Outlet Switching	Yes
Remote Power Cycling	Yes
Connected Equipment Reboot	Yes
Automatic Shutdown Support	Yes
Power Failure Monitoring	Yes
UPS Status Monitoring	Yes
Surge Protection & Filtering
AC Surge Suppression	Yes
Surge Energy Rating	567 Joules
Surge Suppression Response Time	Instantaneous
EMI / RFI AC Noise Suppression	Yes
Line Noise Filtering	Yes
Physical
Primary Form Factor	Rackmount / Tower
Rack Height	1U
Rack Standard	19-inch
2-Post Rack Installation	Supported
2-Post Front Mount Installation	Supported
4-Post Rack Installation	Supported
Tower Installation	Supported
Mounting Brackets	Supported
Minimum Required Rack Depth	14.3 in (36.32 cm)
UPS Height	1.73 in (4.39 cm / 44 mm)
UPS Width	17.32 in (43.99 cm / 440 mm)
UPS Depth	11.26 in (28.60 cm / 286 mm)
UPS Weight	15.84 lb (7.18 kg)
Housing Material	Steel
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 122°F (-15°C to 50°C)
Relative Humidity	0–95%, non-condensing
Maximum Operating Elevation	6561 ft (2000 m) above sea level
Audible Noise	45 dBA maximum at 1 meter
Heat Dissipation - AC Mode, Full Load	48 BTU/hr
AC Mode Efficiency at 100% Load	97%
Packaging
Shipping Height	4.20 in (10.67 cm)
Shipping Width	15.70 in (39.88 cm)
Shipping Depth	21.30 in (54.10 cm)
Shipping Weight	19.12 lb (8.67 kg)
General
Recommended Application	Servers, networking equipment, telecommunications and other critical electronic equipment
Battery Backup	Yes
Surge Protection	Yes
Automatic Voltage Regulation	Yes
Rack / Tower Convertible	Yes
Remote Management Capability	Yes, through local communications or optional network management card
Generator Compatibility	Compatible with properly regulated, computer-grade AC generators
Condition & Warranty
Condition	Refurbished UPS
Batteries	New Batteries
Warranty	1 Year Full Replacement Warranty
