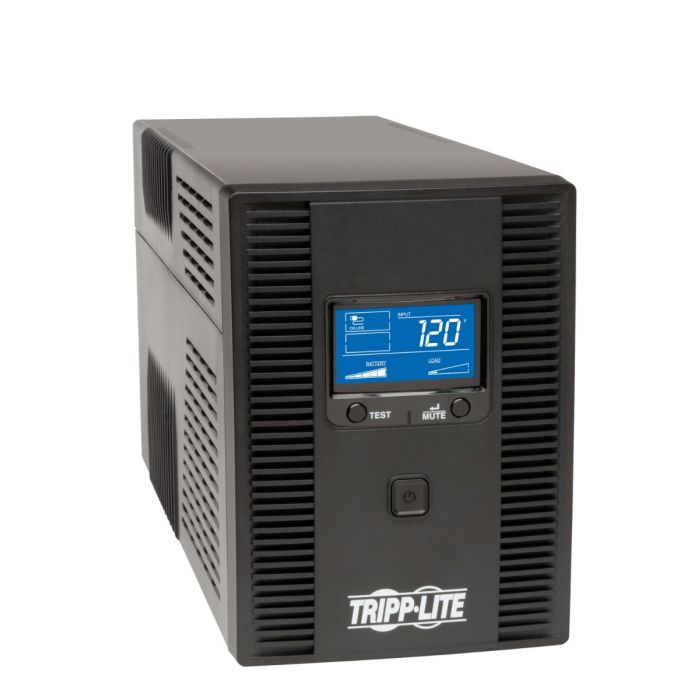

Tripp Lite SmartPro LCD 1300VA 720W 120V Tower Output:(8)5-15R SMART1300LCDT - Refurbished

Rated input current (Maximum Load)

10.8A

Nominal Input Voltage(s) Supported

120V AC

UPS Input Connection Type

Input Circuit Breakers

20A

UPS Input Cord Length (ft.)

6

UPS Input Cord Length (m)

1.8

Recommended Electrical Service

15A 120V

Input Phase

Single-Phase

Output Volt Amp Capacity (VA)

1300

Output kVA Capacity (kVA)

1.3

Output Watt Capacity (Watts)

720

Nominal Voltage Details

120v nominal output in battery mode

Frequency Compatibility

60 Hz

Output Voltage Regulation (Line Mode)

120V (+9% / -12%)

Output Voltage Regulation (Battery Mode)

120V (±10%)

UPS Output Receptacles (Surge Suppression Only)

4 UPS outlets, 4 surge-only outlets

Output AC Waveform (AC Mode)

Sine wave

Output AC Waveform (Battery Mode)

PWM sine wave

Nominal Output Voltage(s) Supported

110V; 115V; 120V

Output Receptacles

Individually Controllable Load Banks

No

Battery Type

Valve Regulated Lead Acid (VRLA)

Half Load Runtime (min.)

10 minutes (360 watts)

DC System Voltage (VDC)

24

Battery Recharge Rate (Included Batteries)

Less than 6.3 hours from 10% to 90%

Internal UPS Replacement Battery Cartridge

RBC51  (requires 2)

Expandable Runtime

No

Voltage Regulation Description

Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150

Overvoltage Correction

Input voltages between 129 and 150 are reduced by 15%

Undervoltage Correction

Input voltages between 92 and 108 are boosted by 18%

Front Panel LCD Display

LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated runtime in minutes

Switches

Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test

Alarm Cancel Operation

Power-fail alarm can be silenced using alarm-cancel switch

Audible Alarm

Audible alarm indicates power-failure and low-battery conditions

UPS AC Suppression Joule Rating

650

UPS AC Suppression Response Time

Instantaneous

UPS Dataline Suppression

1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)

EMI / RFI AC Noise Suppression

Yes

Cooling Method

Primary Form Factor

Primary UPS Depth (mm)

Primary UPS Height (mm)

203

Primary UPS Width (mm)

146

Shipping Dimensions (hwd / in.)

11.30 x 9.10 x 19.40

Shipping Weight (kg)

11.20

Shipping Weight (lbs.)

24.70

UPS Power Module Dimensions (hwd, cm)

20.32 x 14.60 x 39.62

UPS Power Module Dimensions (hwd, in.)

8 x 5.75 x 15.6

UPS Power Module Weight (kg)

9.39

UPS Power Module Weight (lbs.)

20.7

Operating Temperature Range

Storage Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity

5 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load)

100

Battery Mode BTU / Hr. (Full Load)

776

AC Mode Efficiency Rating (100% Load)

95%

Audible Noise

Less than 36 dB, front side 1m

Network Monitoring Port Description

Supports detailed monitoring of UPS and site power conditions

PowerAlert Software

For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at https://www.tripplite.com/poweralert

Communications Cable

USB cabling included

WatchDog Compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

Communications Interface

USB (HID enabled)
