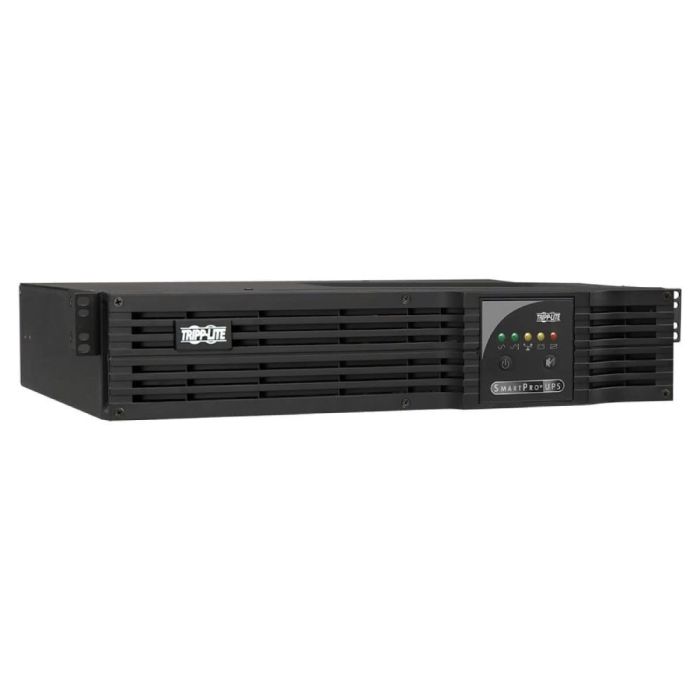

Tripp Lite SmartPro UPS 1000VA 700W 120V Output: (6)5-15R SMART1000RM2U - Refurbished
Tripp Lite SmartPro 1000VA 700W RM 2U 120V
Model: SMART1000RM2U
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$349.99
In stock
Love Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS 1000VA 700W, RM, 2U, 15A, 120V
Condition: New batteries, refurbished UPS
Part Number: SMART1000RM2U
Maximum output: 700W / 1000VA
Typical backup time at half load:15 minutes (400 Watts)
Typical backup time at full load: 5.3 minutes (700 Watts)
Warranty: 1 year full replacement warranty
Tripp Lite SmartPro 1000VA 700W RM 120V SMART1000RM2U Manual
SMART1000RM2U - Tripp Lite SmartPro 1000VA Specifications:
Input:
|
Rated input current (Maximum Load) |
6.8A |
||
|
Nominal Input Voltage(s) Supported |
120V AC |
||
|
UPS Input Connection Type |
|
||
|
Input Circuit Breakers |
15A |
||
|
UPS Input Cord Length (ft.) |
10 |
||
|
UPS Input Cord Length (m) |
3.0 |
||
|
Recommended Electrical Service |
15A 120V |
||
|
Input Phase |
Single-Phase |
Output:
|
Output Volt Amp Capacity (VA) |
1000 |
||
|
Output Capacity (kVA) |
1.0 |
||
|
Output Watt Capacity (Watts) |
700 |
||
|
Power Factor |
0.8 |
||
|
Nominal Voltage Details |
120v nominal output in battery mode |
||
|
Frequency Compatibility |
60 Hz |
||
|
Output Voltage Regulation (Line Mode) |
-21%, +8% |
||
|
Output Voltage Regulation (Battery Mode) |
+/- 5% |
||
|
Load Management Receptacles |
Two switchable two-outlet 5-15R load banks |
||
|
Output AC Waveform (AC Mode) |
Sine wave |
||
|
Output AC Waveform (Battery Mode) |
Pure Sine wave |
||
|
Nominal Output Voltage(s) Supported |
110V; 115V; 120V |
||
|
Output Receptacles |
|
||
|
Individually Controllable Load Banks |
Yes |
Battery:
|
Battery Type |
Valve Regulated Lead Acid (VRLA) |
|
Full Load Runtime (min.) |
9 minutes (700 watts) |
|
Half Load Runtime (min.) |
21 min. (350w) |
|
Expandable Runtime |
No |
|
DC System Voltage (VDC) |
24 |
|
Battery Recharge Rate (Included Batteries) |
2–4 hours to 90% (typical) |
|
Internal UPS Replacement Battery Cartridge |
RBC24S (Tripp Lite replacement cartridge for SMART1000RM2U) |
|
Battery Access |
Battery access door allows hot-swap replacement without powering down connected equipment |
|
Battery Replacement Description |
Hot-swappable, user replaceable batteries |
Voltage Regulation:
|
Voltage Regulation Description |
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 |
|
Overvoltage Correction |
Input voltages between 128 and 147 are reduced by 12% |
|
Undervoltage Correction |
Input voltages between 83 and 107 are boosted by 14% |
User Interface, Alerts & Controls:
|
Front Panel |
The SMART1000RM2U does not include an LCD display. Instead, it features five front panel LEDs that provide at-a-glance notification of UPS and line power status — including Power, Battery Charge, Output Load Level, and Battery Warning indicators. |
|
Switches |
Includes two front panel mounted push-button switches for system enable, self-test, and alarm cancel functions |
|
Alarm Cancel Operation |
The audible alarm can be silenced temporarily using the alarm cancel switch located on the front panel |
|
Audible Alarm |
Provides three audible alarm modes: 4 short beeps every 10 seconds (power failure), continuous short beeps (overload), and continuous tone (low battery) |
Surge / Noise Suppression:
|
UPS AC Suppression Joule Rating |
570 |
|
UPS AC Suppression Response Time |
Instantaneous |
|
EMI / RFI AC Noise Suppression |
Yes |
Physical:
|
Primary Form Factor |
Rackmount
|
|
Cooling Method |
Fan
|
|
Rail kit not included |
No rail kit included (options listed below)
|
|
Installation Form Factors Supported with Included Accessories |
4 post 19 inch rackmount
|
|
Installation Form Factors Supported with Optional Accessories (NOT INCLUDED) |
2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2- 9USTAND ); Wallmount ( 2POSTRMKITWM )
|
|
Minimum Required Rack Depth (cm) |
39.37
|
|
Minimum Required Rack Depth (inches) |
15.5
|
|
Optional Mounting Accessory Notes |
Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
|
|
Primary UPS Depth (mm) |
318
|
|
Primary UPS Height (mm) |
88 |
|
Primary UPS Width (mm) |
441 |
|
Rack Height |
2U |
|
UPS Housing Material |
Steel |
|
UPS Power Module Dimensions (hwd, cm) |
8.76 x 44.07 x 31.75 |
|
UPS Power Module Dimensions (hwd, in.) |
3.45 x 17.35 x 12.5 |
|
UPS Power Module Weight (kg) |
16.06 |
|
UPS Power Module Weight (lbs.) |
35.4 |
Environmental:
|
Operating Temperature Range |
+32 to +104°F / 0 to +40°C
|
|
Storage Temperature Range |
+5 to +122°F / -15 to +50°C |
|
Relative Humidity |
0 to 95%, non-condensing |
|
AC Mode BTU / Hr. (Full Load) |
Not specified in the official datasheet |
|
Battery Mode BTU / Hr. (Full Load) |
Not specified in the official datasheet |
|
AC Mode Efficiency Rating (100% Load) |
95% |
|
Audible Noise |
45 dBA max (front side, 1 meter) |
Communications:
|
Network Management Cards (OPTIONAL, NOT INCLUDED) |
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX |
|
Network Monitoring Port Description |
Supports detailed monitoring of UPS and site power conditions |
|
PowerAlert Software |
For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at https://www.tripplite.com/poweralert |
|
Communications Cable |
USB and DB9 cabling |
|
WatchDog Compatibility |
Supports Watchdog application, OS and hard-reboot restart options for remote applications |
|
Network UPS Tools Compatibility |
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite |
|
Network Management Card Description |
Network management card optional |
|
Communications Interface |
DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled) |
