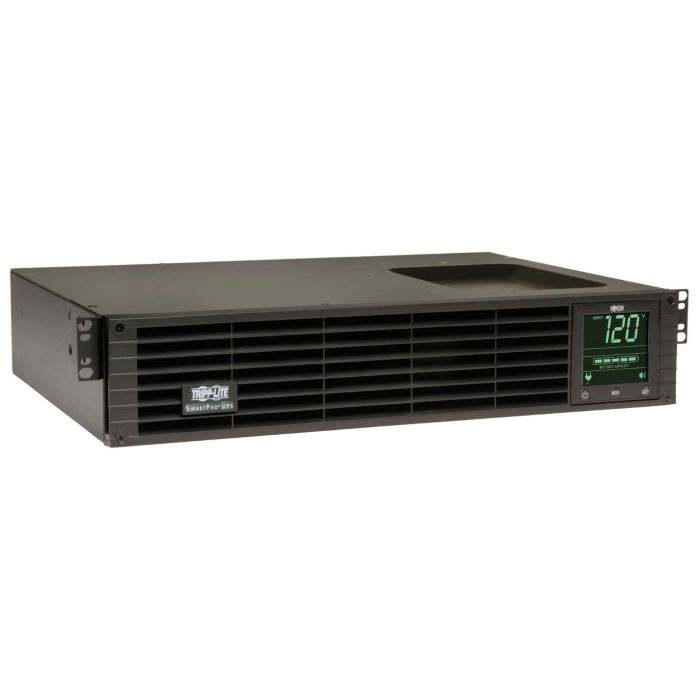

Tripp Lite SmartPro UPS 2200VA 1920W RM 2U LCD 120V 20A SMART2200RMXL2U - Refurbished

Manufacturer: Tripp Lite
Model: Tripp Lite SmartPro UPS 2200VA 1920W, LCD, RM, 2U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMART2200RMXL2U
Maximum output: 1920W / 2200VA
Typical backup time at half load:12 minutes (960 Watts)
Typical backup time at full load: 4.5 minutes (1920 Watts)
Warranty: 1 Year Full Replacement Warranty

Description: The Tripp Lite SMART2200RMXL2U is a line-interactive rackmount UPS that delivers reliable 2200VA / 1920W power protection for servers, network switches, storage devices, VoIP systems, and other critical IT equipment. It provides pure sine wave output with Automatic Voltage Regulation (AVR) to correct voltage fluctuations without using battery power, extending battery life and improving efficiency. The front-panel LCD displays real-time operating status, load level, input/output voltage, runtime, and battery condition. The UPS features eight battery-backed outlets, individually controllable load banks for selective load management, USB and RS-232 communication ports, an Emergency Power Off (EPO) interface, and a SmartSlot for optional SNMP/web network management cards. It also supports optional external battery packs, including the BP48V24-2U, BP48V27-2US, and BP48V60RT-3U, for extended runtime applications.

Tripp Lite SmartPro 2200VA 1920W RM 120V SMART2200RMXL2U - User Manual

SMART2200RMXL2U - Tripp Lite SmartPro 2200VA Specifications:

Product Overview
UPS Topology	Line-Interactive
Form Factor	Rackmount
Rack Height	2U
Power Rating	2200VA / 1920W
Input Voltage	120V
Output Voltage	120V
Waveform Type	Pure Sine Wave
Input Connection	NEMA 5-20P
Output Connections	(4) NEMA 5-15R
	(4) NEMA 5-15/20R
Automatic Voltage Regulation (AVR)	Yes
LCD Display	Front-Panel LCD Display
Load Banks	Two Individually Controllable Load Banks
SmartSlot Compatibility	SNMPWEBCARD, TLNETCARD, WEBCARDLX
Included Accessories	4POSTRAILKIT, USB Cable, DB9 Serial Cable
User Interface, Alerts & Controls
Front Panel Display	Multifunction LCD Status & Configuration Display
LCD Information	Input Voltage, Output Voltage, Load Percentage, Load Wattage, Battery Capacity, Estimated Runtime, Operating Mode, AVR Status, Event Log, External Battery Status, Power Consumption (kWh/Day)
LED Indicators	AC Power, Battery Mode, AVR, Replace Battery, Warning, Load, External Battery, Alarm Status
Control Buttons	ON/OFF, MODE, ENTER/MUTE
Display Functions	Real-Time Monitoring, Configuration Menu, Self-Test, Runtime Display, Voltage Display, Load Display
Audible Alarm	Power Failure, Low Battery, Overload, UPS Fault, Replace Battery, Remote Shutdown
Alarm Management	Audible Alarm Mute, Alarm Enable/Disable, Silent Mode Configuration
Automatic Self-Test	User-Initiated and Automatic Battery Self-Test
LCD Brightness Control	Adjustable High, Medium and Dim Backlight
Display Scroll Mode	Automatic or Manual LCD Screen Navigation
Event Counters	Battery Events and AVR Events Counter
Power Sensitivity Settings	High, Medium or Low Sensitivity
Automatic Voltage Regulation	Automatic Boost and Trim without Battery Operation
Emergency Power Off (EPO)	Yes
Load Bank Control	Two Independently Switched Load Banks
Cold Start Capability	Supports Startup from Battery Power
Factory Reset	LCD Configuration Reset Available
External Battery Configuration	LCD Support for External Battery Configuration
Communications & Management
Interface Ports	USB (HID), DB9 RS-232 Serial, SmartSlot, EPO
SmartSlot	One Available
Compatible Network Cards	SNMPWEBCARD, TLNETCARD, WEBCARDLX
Remote Monitoring	Yes (with Optional Network Management Card)
Remote Shutdown	Supported
Remote Reboot	Supported via Switched Load Banks
PowerAlert Software	Included / Supported
USB HID Support	Yes (Plug-and-Play)
USB Communication	Yes
RS-232 Serial Communication	Yes
Communications Cables	USB and DB9 Serial Cables Included
Operating System Support	Windows, Linux and macOS (PowerAlert Compatible)
Network UPS Tools (NUT)	Supported
WatchDog Compatibility	Supported
Protocol Support	SNMP, HTTP, HTTPS
Event Logging	Yes
UPS Status Monitoring	Input Voltage, Output Voltage, Load, Battery Capacity, Runtime, Temperature and Event Notifications
Scheduled Shutdown	Supported through PowerAlert Software
Automatic Safe Shutdown	Supported
Email / Network Notifications	Supported with Optional SNMP/Web Card
Firmware Upgrade Support	Via Optional Network Management Card
Environmental Monitoring	Supported with Optional WEBCARDLX Environmental Sensors
Emergency Power Off (EPO) Interface	Yes
Contact Closure Signaling	Supported
Management Card Installation	Front Accessible SmartSlot
Input
Nominal Input Voltage	120V AC
Rated Input Current	16A
Recommended Electrical Service	20A, 120V
Input Frequency	60 Hz
Input Plug	NEMA 5-20P
Input Cord Length	10 ft (3.1 m)
Input Phase	Single-Phase
AVR Input Range	83-145V
Output
Output Capacity	2200VA / 1920W
Power Factor	0.87
Output Voltage	110V / 115V / 120V
Output Frequency	60 Hz
Output Voltage Regulation (Battery Mode)	±5%
Output Voltage Regulation (Line Mode)	-14%, +6%
Output Waveform	Pure Sine Wave
Output Receptacles	(4) NEMA 5-15R, (4) NEMA 5-15/20R
Load Banks	Two Individually Switched
Surge Energy Rating	570 Joules
EMI/RFI Noise Filtering	Yes
Batteries & Runtime
Battery Type	Valve Regulated Lead Acid (VRLA)
Replacement Battery	RBC94-2U
DC Bus Voltage	48VDC
Typical Runtime at Half Load	12 Minutes (960W)
Typical Runtime at Full Load	4.5 Minutes (1920W)
Recharge Time	Less than 4.5 Hours (10% to 90%)
Battery Access	Front Panel
Battery Replacement	Hot-Swappable, User Replaceable
Extendable Runtime	Yes
Compatible External Battery Packs	BP48V24-2U, BP48V27-2US, BP48V60RT-3U
Physical
Form Factor	Rackmount
Rack Height	2U
Height	3.46 in (88 mm)
Width	17.32 in (440 mm)
Depth	19.29 in (490 mm)
UPS Weight	57.6 lbs (26.13 kg)
Housing Material	Steel
Cooling Method	Fan
Included Rack Kit	4POSTRAILKIT
Optional Mounting	Tower, Wall Mount, 2-Post Rack, 4-Post Short Depth Rack
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 122°F (-15°C to 50°C)
Operating Humidity	0-95% Non-Condensing
AC Mode Efficiency	Up to 96%
Audible Noise	45 dBA Maximum
Heat Dissipation	306 BTU/hr (AC Mode), 1157 BTU/hr (Battery Mode)
Conformance
Product Family	Tripp Lite SmartPro LCD
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty Included
