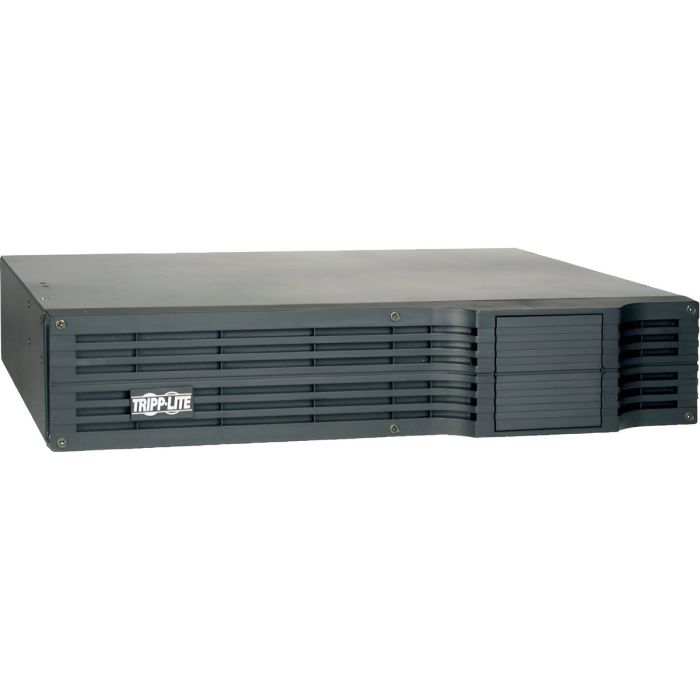

Tripp Lite SU5000XFMRT2U 5000VA/ 5KW RM 2U 208V to 120V Step Down Transformer - Refurbished
Tripp Lite 5000VA / 5kW RM 2U Step down transformer 208V to 120V
Model: SU5000XFMRT2U
Input: 208V 30A (L6-30P)
Output: (12) 5-15R, (1) L6-30R
Refurbished Step Down Transformer
1 Year Warranty
Â
Â
$449.99
Back Order
Manufacturer:Â Tripp Lite
Model:Â SU5000XFMRT2UÂ 5kVA / 5kWÂ Step-down Isolation Transformer -Â Converts 208V UPS, Utility or generator power to 120V
Condition:Â Refurbished
Part Number:Â SU5000XFMRT2U
Warranty:Â 1 Year Full Replacement Warranty, additional warranty available
User's Manual: LinkÂ
Tripp Lite's SU5000XFMRT2U step-down, isolation transformer converts 208V input from generator, utility or UPS high voltage source to 120V low voltage output. 208V 30A input plug with 10 foot AC cord connects to L6-30R socket. 12 NEMA 5-15/20R output receptacles accommodate 5-15P or 5-20P equipment plugs. Built-in L6-30R outlet supports high voltage output. Supports 2U rackmount installation with included brackets for 4 post enclosures. Supports 2 post rackmount installation with optional 2POSTRMKITWM. Supports upright tower installation with 2-9USTAND.
The step down transformer is refurbished and comes with a one year replacement warranty. Additional warranty is available for your convenience.
Tripp Lite 5000VA / 5kW RM 2U Step down transformer 208V to 120V - User Manual
SU5000XFMRT2U Specifications:
|
OVERVIEW |
|
|---|---|
|
Model Type |
Transformers |
|
OUTPUT |
|
|
Frequency compatibility |
60 Hz |
|
Output VA |
5000 |
|
Output watts |
5000 |
|
Output nominal voltage |
120/208V AC |
|
Overload protection |
Includes 4 built-in 20A circuit breakers. Each breaker protects 3 5-15/20R outlets each. |
|
Outlet quantity / type |
12 NEMA 5-15/20R (120V), 1 NEMA L6-30R (208V) |
|
INPUT |
|
|
Nominal Input Voltage(s) Supported |
208V AC |
|
UPS Input cord length (ft.) |
10 |
|
UPS Input cord length (m) |
3.05 |
|
Recommended Electrical Service |
208V 30A |
|
Maximum Input Amps (A) |
24 |
|
Input connection type |
NEMA L6-30P |
|
Voltage compatibility (VAC) |
120 |
|
PHYSICAL |
|
|
Installation form factors supported with included accessories |
4 post 19 inch rackmount (mounting rail kit included) |
|
Shipping weight (lbs) |
60 |
|
Shipping weight (kg) |
27.2 |
|
Unit Dimensions (HWD/in) |
3.5 x 17.5 x 20.75 |
|
Unit Dimensions (HWD/cm) |
8.9 x 44.5 x 52.7 |
|
Unit weight (lbs) |
70 |
|
Unit weight (kg) |
34 |
|
Material of construction |
Steel |
|
Form factors supported |
Rack/Tower (2U) |
|
ENVIRONMENTAL |
|
|
Relative Humidity |
0-95% (non-condensing) |
