Description
Details
Manufacturer: Liebert

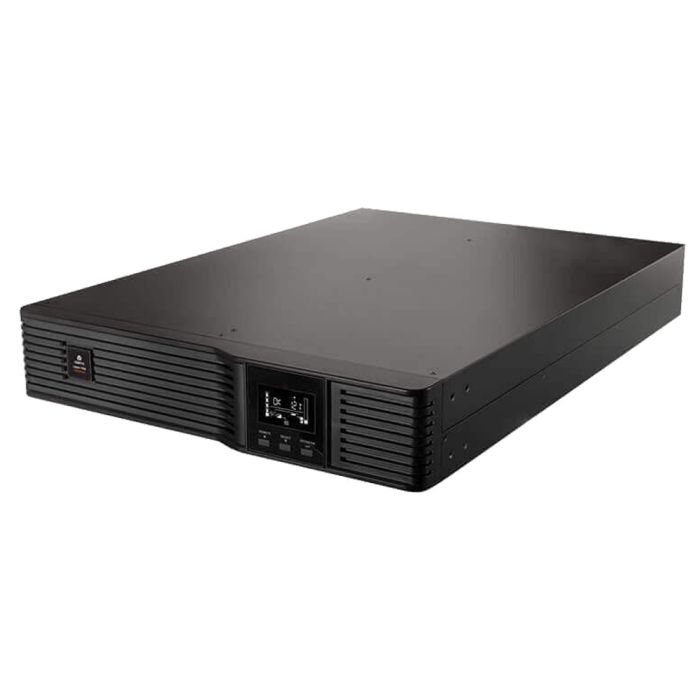

Model: Vertiv Liebert PSI5 1500VA 1350W , Lithium-Ion, RM 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: PSI5-1500RT120LI
Maximum output: 1350W / 1500VA
Typical backup time at half load: 17.7 minutes (675 Watts)
Typical backup time at full load: 7.5 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
Liebert PSI5 1500VA 1350W RM 2U PSI5-1500RT120LI User's Manual
PSI5-1500RT120LI - Liebert PSI5 1500VA Specifications:
Input:
|
Voltage Input Range (with |
0 to 150 VAC |
||
|
Voltage Input Range |
75 to 146 VAC |
||
|
Input Voltage Measurement Tolerance |
3% |
||
|
Frequency Input Range |
55 to 65 Hz (57 to 63 Hz Battery to Normal comeback) |
||
|
Internal Rear Panel lnput Breaker |
16 A |
||
|
Input Surge Protection |
ANSI C62.41 Category A, Level 3 1372J |
||
|
Input Power Cord |
3 m |
||
|
Input Connection Type |
|
Output:
|
Output Connection Type |
|
||||
|
Output Voltages |
100 / 110/ 115 / 120 / 125 VAC (±1.5 on battery before alarm) user selectable |
||||
|
Output Frequency (on battery) |
60 (default) / 50 Hz ±1% |
||||
|
Transfer Time |
Adjustable with User Setting 09 |
||||
|
Waveform |
Sine wave |
||||
|
Output Overload Operation |
100% — Alarm warning |
||||
|
Protection |
Electronic (overcurrent, short circuit w/ latching shutdown) |
||||
|
AC Mode Efficiency |
97% |
||||
|
Buck and Boost Mode |
94% |
||||
|
Recharge Time (typical) |
2 hours to recover to |
Batteries and Runtime:
|
Type |
Lithium-Ion (LiFePO4) |
|
Recharge Time (from full discharge) |
2hrs to 90% |
Environmental:
|
Operating Temperature, |
32° to 104° (0° to 40°) |
|
Storage Temperature, |
5° to 120° (-15° to 50°) |
|
Relative Humidity |
20% – 90%, non-condensing |
|
Operating Altitude, ft (m) |
0 to 9,942 (0 to 3,000) without derating. |
|
Audible Noise |
< 45 dB @ line mode, < 55 dB @ battery mode |
Physical:
|
Maximum Height |
3.4 inches (86 mm)
|
|
Maximum Width |
17.2 inches (438 mm) |
|
Maximum Depth |
16.2 inches (411 mm) |
|
Net weight |
28 lbs. (12.9 kg) |
|
Rack Height |
2U |
Agency:
|
Safety |
UL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3 |
|
Agency |
UL 1778, c-UL, NOM, FCC Part 15, Class B |
|
Environmental |
RoHS2 / REACH / WEEE |
|
Network Surge |
ANSI C62.41, Category A, Level 3 |
|
Transportation |
ISTA Procedure 2A |
Additional Info
Additional Info
| Manufacturer | Liebert |
|---|---|
| Form Factor | Rackmount |
| Waveform in Battery Mode | Pure Sinewave |
| Input Voltage | 120V AC |
| Output (VA) | 1500VA |
| Output Voltage | 120V AC |
| PDU Total Outlets | No |
