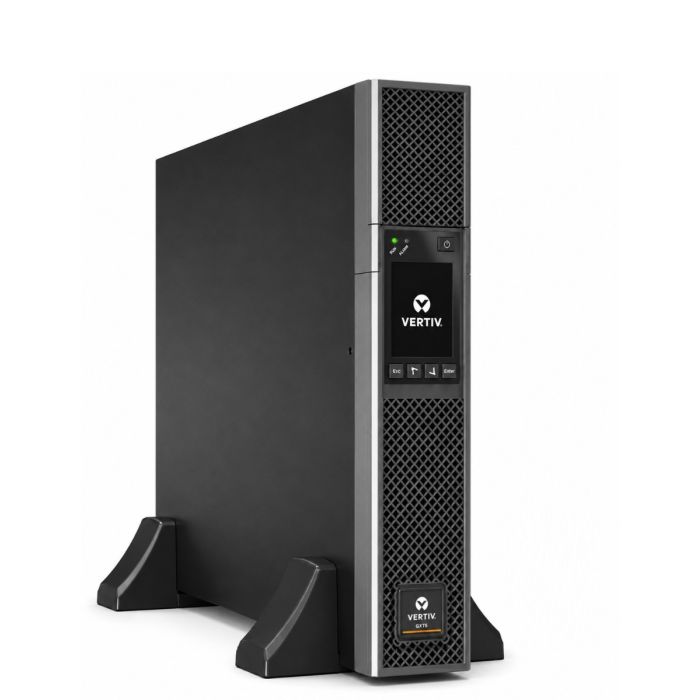

Main image Click to view image in fullscreen Vertiv Liebert 1500VA 1350W Tower Double-Conversion Online 120V GXT5-1500LVRT2UXL - Refurbished

Vertiv Liebert 1500VA 1350W Tower Double-Conversion Online 120V GXT5-1500LVRT2UXL - Refurbished

Vertiv Liebert GXT5 1500VA 1350W Tower UPS 120V

Model: GXT5-1500LVRT2UXL
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Double-Conversion Online UPS - Pure Sine Wave Output
Tower Configuration with Mounting Feet Included
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included

Extended Warranty

1 Year Included

2 Year + $130.00

3 Year + $227.50

In stock

Quantity

Manufacturer: Vertiv, Liebert
Model: Vertiv Liebert GXT5 UPS 1500VA 1350W Tower 120V - Online Double Conversion UPS
Condition: New Batteries, Refurbished UPS
Part Number: GXT5-1500LVRT2UXL
Maximum output: 1350W / 1500VA
Typical backup timeat half load: 18.8 minutes (675 Watts)
Typical backup time at full load: 6.7 minutes (1350 Watts)
Warranty: 1 Year Full Replacement Warranty

Description: The Vertiv Liebert GXT5-1500LVRT2UXL is a 1500VA / 1350W online double-conversion UPS designed for critical IT, network, telecommunications, and edge computing applications. Delivering pure sine wave output with zero transfer time, the GXT5 provides continuous power conditioning and protection against outages, voltage fluctuations, surges, and electrical noise. Operating at 120V with user-selectable output voltages of 110V, 115V, and 120V, this tower-configured UPS features (6) NEMA 5-15R output receptacles and supports external battery cabinets for extended runtime. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty, the GXT5-1500LVRT2UXL offers reliable enterprise-class power protection in a compact tower form factor.

Liebert GXT5 1500VA 1350W GXT5-1500LVRT2UXL Tower - User's Manual

GXT5-1500LVRT2UXL - Liebert UPS 1500VA / 1350W Specifications:

Key Features
UPS Topology	Double-Conversion Online
Form Factor	Tower
Rated Power Capacity	1500VA / 1350W
Input Voltage	120V
Output Voltage	110V / 115V / 120V User Selectable
Waveform Type	Pure Sine Wave
Input Plug	NEMA 5-15P
Output Receptacles	(6) NEMA 5-15R
External Battery Support	Yes
User Interface	Color LCD Display
Runtime Expansion	Supported

Input
Input Voltage Range	60-150V AC
Nominal Input Voltage	120V
Input Frequency	40-70Hz Auto-Sensing
Input Power Cord	10 ft Attached Cord
Input Plug Type	NEMA 5-15P
Generator Compatible	Yes

Output
Output Voltage	110V / 115V / 120V User Configurable
Output Voltage Regulation	±3%
Output Frequency	50/60Hz Auto-Sensing
Waveform	Pure Sine Wave
Output Receptacles	(6) NEMA 5-15R
Utility Mode Overload	>200% for 250ms
	150-200% for 2 Seconds
	125-150% for 50 Seconds
	105-125% for 60 Seconds

Battery & Runtime
Battery Type	Valve-Regulated Sealed Lead-Acid
Runtime @ 100% Load (1350W)	6.7 Minutes
Runtime @ 50% Load (675W)	18.8 Minutes
Runtime with 1 External Battery @ 100% Load	32.4 Minutes
Runtime with 1 External Battery @ 50% Load	79.7 Minutes
External Battery Cabinet Support	Yes
Rechargeable Batteries	Yes
Hot-Swappable Batteries	Yes

Communications & Management
Display Interface	LCD Graphical Display with Keypad
Front Panel	Color LCD for Status, Alarms, Load & Battery Information
Remote Monitoring	Supported via Optional Communication Cards
Communication Slot	1 IntelliSlot Port
Communication Ports	USB, RS-232
Dry Contact Support	Optional via Communication Card
Network Interface	Optional
Supported Protocols	SNMP v1/v2c/v3
	HTTP / HTTPS
	SSH
	Telnet
	Modbus TCP/IP
Software Compatibility	Vertiv Power Insight
	Vertiv LIFE Services
Remote Shutdown	Supported
Event Logging	Supported
Data Logging	Supported
Alarm Notifications	Audible & Visual
Alarm Types	Power Failure
	Low Battery
	Overload
	Over Temperature
	Fault Conditions
Firmware Upgrade	Supported
User Access Control	Role-Based Access
Security	HTTPS, SSH, SNMPv3
Emergency Power Off (EPO)	Supported

Physical
Height	16.9 in (430 mm)
Width	18.5 in (470 mm)
Depth	3.4 in (85 mm)
Net Weight	46.2 lbs (21 kg)
Color	Black
Form Factor	Tower

Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	0-95% Non-Condensing
Operating Elevation	Up to 10,000 ft (3,000 m)
Storage Elevation	Up to 50,000 ft (15,000 m)
Audible Noise	<46 dBA Front & Side
	<45 dBA Rear

Agency & Compliance
Safety Certifications	UL 1778 4th Edition
	CSA 22.2 No. 107.3
Emissions	FCC Part 15 Class A
	CISPR22 Class A
Surge Immunity	ANSI C62.41 Category B
Transportation	ISTA Procedure 1A
Environmental Compliance	RoHS2
	REACH
	WEEE
