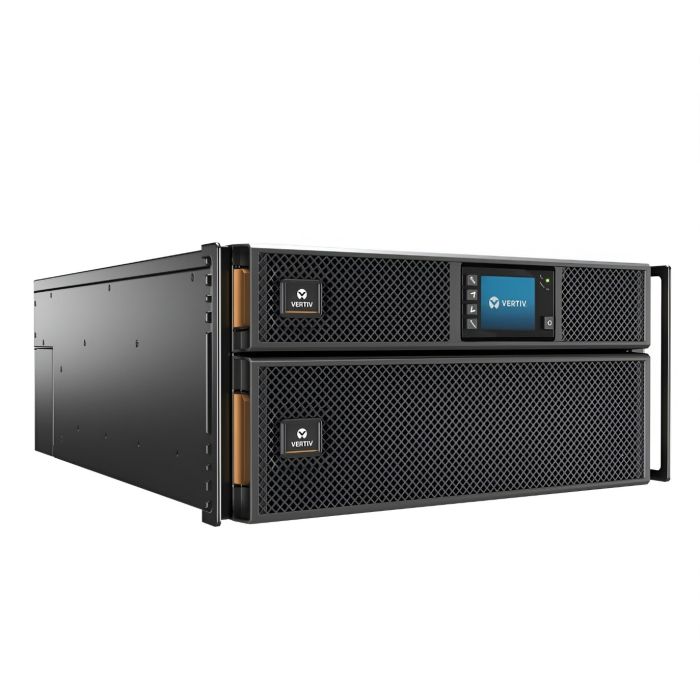

Vertiv Liebert GXT5 5000VA 5000W RM 5U 208/240V 50A GXT5-5000HVRT5UXLN - Refurbished

Manufacturer: Vertiv
Model: Vertiv Liebert GXT5 5000VA 5000W RM 5U 208V/240V - Online Double Conversion UPS
Condition: New Batteries, Refurbished UPS
Part Number: GXT5-5000HVRT5UXLN
Maximum output: 5000W / 5000VA
Typical backup timeat half load: 18.5 minutes (2500 Watts)
Typical backup time at full load: 7 minutes (5000 Watts)
Warranty: 1 year full replacement warranty

Description: The Vertiv Liebert GXT5-5000HVRT5UXLN is a 5000VA / 5000W online double-conversion UPS designed to provide reliable power protection for servers, networking equipment, data centers, and other critical IT systems. It supports 208V / 240V hardwired input and configurable 200V, 208V, 220V, 230V, or 240V output with pure sine wave power. The UPS features (2) NEMA L6-20R and (2) NEMA L6-30R receptacles plus hardwired output, integrated maintenance bypass, programmable outlets, and a rack/tower convertible 5U design. It also supports network monitoring and management, USB and serial communications, REPO, environmental monitoring, and external battery cabinets for extended runtime. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.

Vertiv GXT5 5000VA 5000W GXT5-5000HVRT5UXLN - User's Manual

GXT5-5000HVRT5UXLN - Vertiv UPS 5000VA / 5000W Specifications:

Main
Manufacturer	Vertiv
Product Family	Liebert GXT5
Model	GXT5-5000HVRT5UXLN
Product Type	Uninterruptible Power Supply (UPS)
Maximum Output Power	5000W / 5000VA
Output Power Factor	1.0
Topology	Online Double Conversion
Output Waveform	Sine Wave
Form Factor	Rack / Tower Convertible
Rack Height	5U
Nominal Input Voltage	208V
Configurable Input Voltage	200V / 208V / 220V / 230V / 240V
Nominal Output Voltage	208V
Configurable Output Voltage	200V / 208V / 220V / 230V / 240V
Wiring Configuration	L1-L2-G
Power Distribution Box	PD5-CE6HDWRMBSU
Network Management	Vertiv Liebert RDU101 Network Communication Card Pre-Installed
Included Equipment	UPS, Pre-Installed RDU101 NIC, Rack Ears, Rail Kit, Tower Stand (Feet), USB Cable
Input
Factory Default Input Voltage	208VAC
User-Configurable Input Voltage	200V / 208V / 220V / 230V / 240V
Input Wiring	L1-L2-G
Input Power Connection	PD5-CE6HDWRMBSU
Input Connection Type	Hardwired
Operating Input Voltage Range	176–288VAC without battery operation
Extended Input Voltage Range	100–176VAC with power derating
Maximum Allowable Input Voltage	288VAC
Nominal Input Frequency	50Hz or 60Hz
Factory Default Frequency	60Hz
Input Frequency Range Without Battery Operation	40–70Hz
Recommended External Circuit Breaker	50A
Recommended Wire Size	8 AWG copper, including ground
Maximum Wire Size Accepted by Terminal Block	6 AWG
Terminal Tightening Torque	20 in-lb (2.26 Nm)
Input Circuit Breaker	Integrated
Output
Maximum Output Power	5000W / 5000VA
Nominal Output Voltage	208VAC
User-Configurable Output Voltage	200V / 208V / 220V / 230V / 240V
Factory Default Output	208VAC, 60Hz
Output Waveform	Sine Wave
Output Power Factor	1.0
Output Power Connection	PD5-CE6HDWRMBSU
Hardwired Output	Yes
Output Receptacles NEMA L6-20R	(2) NEMA L6-20R
Output Receptacles NEMA L6-30R	(2) NEMA L6-30R
Total Output Receptacles	(4)
Programmable Output Receptacles	(2) NEMA L6-20R
Output Circuit Breaker	Integrated
L6-20R Output Breaker	Programmable output breaker
L6-30R Output Breaker	Integrated
AC-AC Efficiency	94%
Normal Mode Overload ≤105%	Continuous
Normal Mode Overload 105–125%	5 Minutes
Normal Mode Overload 125–150%	60 Seconds
Normal Mode Overload >150%	Minimum 200ms
Batteries & Runtime
Battery Type	Valve-Regulated, Non-Spillable, Flame-Retardant Lead-Acid
Internal Battery Quantity	(16)
Battery Voltage	12V each
Battery Capacity	9.0Ah each
Battery Configuration	16 × 12V × 9.0Ah
Replacement Battery Pack	GXT5-192VBATKIT
Internal Battery Hot-Swappable	Yes
Typical Backup Time at Half Load	18.5 Minutes (2500W)
Typical Backup Time at Full Load	7.0 Minutes (5000W)
Runtime with (1) External Battery Cabinet at Half Load	48.0 Minutes (2500W)
Runtime with (1) External Battery Cabinet at Full Load	19.0 Minutes (5000W)
External Battery Cabinet Support	Yes
Maximum External Battery Cabinets	Up to (10) EBCs
EBC Auto-Detection	Up to (6) EBCs
External Battery Connector	Yes
Internal Battery Charger	1.8A default, up to 5A maximum
Power Conversion & Protection
UPS Technology	High-Frequency Online Double Conversion
Continuous Power Conditioning	Yes
Voltage Regulation	Continuous
Sine Wave Output	Yes
Rectifier / Power Factor Correction	Yes
Inverter	Continuous Online Operation
Transient Voltage Surge Suppression	Yes
EMI/RFI Filtering	Yes
Automatic Bypass	Yes
Maintenance Bypass	Integrated
ECO Mode	Yes
Cold Start	Yes
Communications & Management
Network Management Card	Vertiv Liebert IntelliSlot RDU101
Network Management Card Included	Yes, Pre-Installed
Network Management Slot	Liebert IntelliSlot
Network Monitoring	Yes
SNMP Monitoring	Yes
Web Management	Yes
Building Management System Integration	Yes
Remote UPS Monitoring	Yes
Remote UPS Management	Yes
Network Interface	Ethernet via RDU101
RDU101 Network Information	MAC Address, IPv4 Address, Subnet Mask and Gateway Address viewable from UPS interface
Environmental Monitoring	Supported
External Temperature Sensor Support	Yes
Temperature Sensor Interface	RS-485, RJ-45
USB Communication	Yes
USB Port	(1)
Serial Communication	Yes
RS-232 Port	RJ-45 / RJ-11 connection for Command Line Interface (CLI)
RS-485 Port	RJ-45 connection for external temperature sensors
Terminal-Block Communication Connectors	Yes
Dry Contact Port	Yes
Dry Contact I/O Rating	125VAC, 0.5A / 30VDC, 1A
Dry Contact Alarm Functions	Low Battery, On Battery, On Bypass, UPS Fault
Remote Emergency Power Off (REPO)	Yes
REPO Operation	Normally-closed fail-safe configuration; opening the circuit shuts down rectifier/inverter and UPS output
External Battery Communication	Yes
EBC Detection	Yes
EBC Detection Dry Contact	Yes
RDU101 Monitoring Application	UPS monitoring across network and/or Building Management System
Local LCD Network Information	Displays RDU101 MAC Address, IPv4 Address, Subnet Mask and Gateway Address
User Interface, Alerts & Controls
Control Panel	Full-Color Graphic LCD
LCD Configuration	Model-Specific Color LCD for UPS configuration and control
UPS Status Monitoring	Yes
Input Monitoring	Yes
Output Monitoring	Yes
Battery Monitoring	Yes
Load Monitoring	Yes
Alarm / Event Information	Yes
Configuration from Front Panel	Yes
Audible Alarm	Yes
Power Management Features
Normal Mode	Yes
Battery Mode	Yes
Bypass Mode	Yes
ECO Mode	Yes
Maintenance Bypass Mode	Yes
Programmable Outputs	Yes
Programmable NEMA L6-20R Outlets	(2)
Automatic Battery Charging	Yes
Cold Start from Battery	Yes
Automatic Bypass Transfer	Yes
Physical
Form Factor	Rack / Tower Convertible
Rack Height	5U
Dimensions (D × W × H)	16.9 × 24.8 × 8.5 in (430 × 630 × 217 mm)
Net Weight	156.7 lb (71.1 kg)
Rack Ears	Included
Removable Power Distribution Box	Yes
Standard POD	PD5-CE6HDWRMBSU
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C), no derating
Extended Operating Temperature	32°F to 122°F (0°C to 50°C), output derated 1% per °C above 40°C
Storage Temperature	5°F to 104°F (-15°C to 40°C)
Relative Humidity	0–95%, non-condensing
Operating Elevation	Up to 9,842.5 ft (3,000 m) at 77°F (25°C) without derating
Audible Noise - Front	Less than 55 dBA at 1 meter
Audible Noise - Rear / Sides	Less than 50 dBA at 1 meter
Conformance
Safety	IEC 62040-1:2017+A1:2021; AS 62040.1:2019; EN IEC 62040-1:2019+A11:2021; BS EN IEC 62040-1:2019+A11:2021; GS Mark; UL 1778; c-UL Listed
EMI / EMC	IEC/EN/AS 62040-2 2nd Edition (Category 2, Table 6); FCC Part 15 Class A; CISPR22 Class A
ESD	IEC/EN 61000-4-2, Level 4, Criteria A
Radiated Susceptibility	IEC/EN 61000-4-3, Level 3, Criteria A
Electrical Fast Transient	IEC/EN 61000-4-4, Level 4, Criteria A
Surge Immunity	IEC/EN 61000-4-5 Level 4, Criteria A; ANSI C62.41 Category B
Transportation	ISTA Procedure 1E
General
ENERGY STAR	ENERGY STAR 2.0
RoHS	RoHS2
REACH	Compliant
Installation Type	Indoor
Power Distribution	Removable POD
External Battery Capability	Yes
Maximum External Battery Cabinets	(10)
Condition & Warranty
Condition	New Batteries, Refurbished UPS
Included Network Card	Pre-Installed Vertiv Liebert RDU101
Warranty	1 Year Full Replacement Warranty
