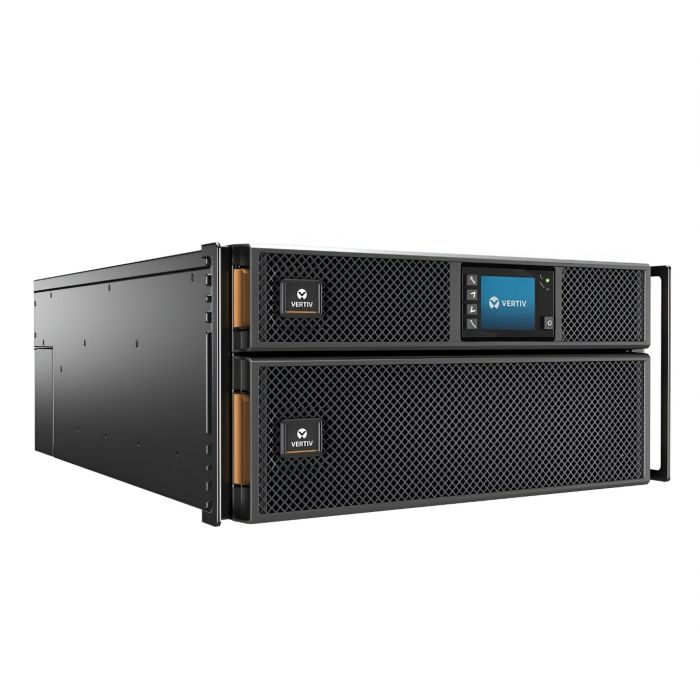

Vertiv Liebert GXT5 5000VA 5000W RM/Tower 5U 208/240V 50A GXT5-5000MVRT4UXLN - Refurbished

Vertiv GXT5 5000VA 5000W RM/Tower 5U 208V 50A
Model: GXT5-5000MVRT4UXLN
Input: Hard-wired terminal block 3W + G (L-L-N-G) (176 - 280 VAC)
Output: Hard-wired 3W + G (L-L-N-G)
Online, Double-Conversion UPS - Sine wave Output
New batteries, refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + $560.00

3 Year + $980.00

In stock

Quantity

Manufacturer: Vertiv
Model: Vertiv Liebert GXT5 5000VA 5000W RM/Tower 5U 208V/240V - Online Double Conversion UPS
Condition: New Batteries, Refurbished UPS
Part Number: GXT5-5000MVRT4UXLN
Maximum output: 5000W / 5000VA
Typical backup timeat half load: 18.5 minutes (2500 Watts)
Typical backup time at full load: 7 minutes (5000 Watts)
Warranty: 1 year full replacement warranty
Included: UPS, preinstalled RDU101 NIC, rack ears, rail kit, tower stand (feet), USB cable

Vertiv GXT5 5000VA 5000W GXT5-5000MVRT4UXLN User's Manual

GXT5-5000MVRT4UXLN - Vertiv UPS 5000VA / 5000W Specifications:

Overview:

Power Rating	5000 VA / 5000 W
Input Voltage	120/208 VAC (configurable)
Output Voltage	120/208 VAC
Efficiency	93% (typical at full load)
Wiring	Hardwired terminals (L1-L2-N-G block)

Operational Conditions:

Operating Temperature

T32 to 104 °F (0 to 40 °C)

Physical:

Dimensions (inch/mm)	16.9 x 25.6 x 6.8 in (430 x 650 x 173 mm)
Weight (lbs/kg)	125.6 lb (57 kg)

Input AC:

Operating Voltage Range (no battery)	50 or 60 Hz (factory-default 60 Hz)
Factory-default VAC	120/208 VAC
User-configurable VAC	Yes, configurable
Operating Voltage Range (no battery)	40-70 Hz
Maximum Allowable VAC	150 VAC
Input Frequency without Battery Operation	40-70 Hz
Voltage Range	120/208 VAC
Input Power Connection	Hardwired terminal block (L1-L2-N-G)

Output AC:

Output Power Connection	Hardwired output
Output Power Connection	Hardwired terminal block (L1-L2-N-G)
AC-AC Efficiency	AC93% (typical at full load)
Factory-default VAC Frequency	60Hz
Output Voltage	120/208 VAC
Waveform	Sine Wave
Normal Mode Overload	105% for 60 seconds, 150% for 30 seconds

Interfaces / Ports:

Interface Options	SNNMP/web management (via Vertiv RDU101 card ), serial port, USB port, dry contact
Protocols	SNMP, HTTP, HTTPS, FTP, Modbus ( optional via external card)
Control Panel	LCD Display with gravity-sensing orientation for easy use

Internal Battery Charger:

Charger Current, A

1.8A A (default), max 5 A

Battery Parameters:

Type	Valve-regulated lead acid (VRLA)
Quantity x Voltage x Rating	12 X 12V X 9.0 AH
Upper-limit selections	N/A
Lower-limit selections	N/A
Disable-bypass operation	Yes
Backup Time (100% Load)	4.5 minutes (with internal battery)
Backup Time (50% Load)	12.5 minutes (with internal battery)
+1 External Battery Cabinet (100% Load)	22.5 minutes (with one addional cabinet)
+1 External Battery Cabinet (50% Load)	55.5 minutes (with one addional cabinet)

Environmental:

Operating Temperature, °F (°C)	32 to 104 °F (0 to 40 °C)
Storage Temperature, °F (°C )	5 to 122 °F (-15 to 50 °C)
Relative Humidity	0 – 95% non-condensing
Operating Elevation	Up to 10,000 feet (3,000 m) at 25 °C (77 °F) without derating
Audible Noise	<50 dBA at 1 m from front and sides; <55 dBA at 1 m from rear

Agency:

Safety	UL1778, c-UL listed
EMI/EMC/C-Tick EMC	FCC Part 15 Class A, IEEE/ANSI C62.41 Category B
ESD	Yes (meets standards)
Radiated Susceptibility	Meets IEEE standards
Electrical Fast Transient	Meets IEEE standards
Surge Immunity	Meets IEEE standards
Transportation	ISTA Procedure 1A
Emissions	Meets emissions standards

Miscellaneous:

Listings	UL1778, c-UL listed
Topology	Online double-conversion
