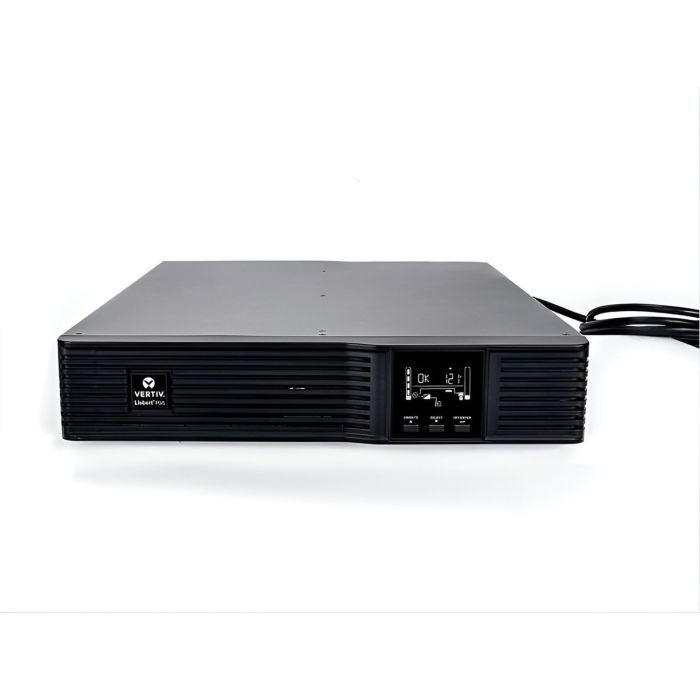

Vertiv Liebert PSI5 1500VA 1350W 120V 15A Output: (6)5-15R, PSI5-1500RT120 - Refurbished

Manufacturer: Vertiv
Model: Vertiv Liebert PSI5 Line-Interactive UPS 1500VA 1350W, RM 2U, 120V, New Batteries, Refurbished UPS
Condition: New Batteries, Refurbished UPS
Part Number: PSI5-1500RT120
Maximum Output: 1350W / 1500VA
Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Waveform: Pure Sine Wave
Typical Backup Time at Half Load: 18 Minutes (675 Watts)
Typical Backup Time at Full Load: 6 Minutes (1350 Watts)
Warranty: 1 Year Full Replacement Warranty Included

Description: The Vertiv Liebert PSI5-1500RT120 is a line-interactive UPS designed to provide reliable 1350W / 1500VA power protection for servers, networking equipment, VoIP systems, and other critical IT applications. It features pure sine wave output, Automatic Voltage Regulation (AVR), a graphical LCD display, hot-swappable VRLA batteries, and an Intellislot expansion port for optional network management. Equipped with a NEMA 5-15P input, (3) controllable and (3) non-controllable NEMA 5-15R output receptacles, it supports optional external battery cabinets for extended runtime. This refurbished UPS includes new batteries, rack ears, rail kit, tower stand feet, and is backed by a 1-Year Full Replacement Warranty.

Vertiv Liebert PSI5 1500VA 1350W RM 2U 120V PSI5-1500RT120 - User's Manual

PSI5-1500RT120 - Vertiv UPS 1500VA / 1350W Specifications:

Key Features
UPS Topology	Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor	Rackmount / Tower Convertible
Rack Height	2U
Rated Power Capacity	1500VA / 1350W
Output Power Factor	0.9
Waveform Type	Pure Sine Wave
Input Voltage	120V
Output Voltage	100/110/115/120/125V (User Selectable)
Input Connection	NEMA 5-15P
Output Connections	(3) NEMA 5-15R (Controllable), (3) NEMA 5-15R (Non-Controllable)
Input Cord Length	10 ft (3 m)
Efficiency	Up to 96%
Automatic Voltage Regulation (AVR)	Yes
Hot-Swappable Batteries	Yes
Extended Runtime Support	Yes
External Battery Compatibility	PSI5-48VBATT
Cold Start Capability	Yes
LCD Display	Graphical LCD Display
Included Accessories	Rack Ears, Rail Kit, Tower Feet
Application	Servers, network switches, VoIP systems, edge computing and critical IT equipment
Output
Output Power Capacity	1500VA / 1350W
Output Voltage	100/110/115/120/125V (Selectable)
Output Frequency	50/60 Hz ±1%
Waveform Type	Pure Sine Wave
Transfer Time	Adjustable: 4–6 ms (Default), 6–8 ms, 8–10 ms
Output Receptacles	(3) NEMA 5-15R (Controllable)
	(3) NEMA 5-15R (Non-Controllable)
Output Voltage Regulation	±1.5% (Battery Mode)
Output Overload Protection	Electronic Overcurrent & Short-Circuit Protection
AC Mode Efficiency	Up to 96%
Buck/Boost Mode Efficiency	Up to 93%
Input
Nominal Input Voltage	120V
Input Voltage Range (Battery Operation)	0–150 VAC
Input Voltage Range (Normal Operation)	75–146 VAC
Input Frequency	55–65 Hz
Input Voltage Settings	100/110/115/120/125V
Input Connection	NEMA 5-15P
Input Circuit Breaker	16A
Surge Protection	1372 Joules
Input Phase	Single-Phase
Input Cord Length	10 ft (3 m)
Batteries & Runtime
Battery Type	Valve-Regulated Lead-Acid (VRLA)
Internal Battery Configuration	4 × 12V × 9Ah
Replacement Battery Kit	PSI5-1500BATKIT
Typical Runtime at Half Load	18 Minutes (675W)
Typical Runtime at Full Load	6 Minutes (1350W)
Typical Recharge Time	6–8 Hours (90% Capacity)
Hot-Swappable Batteries	Yes
External Battery Support	Yes
Compatible External Battery Cabinet	PSI5-48VBATT
Battery Protection	Electronic Overcurrent & Short-Circuit Protection
Communications & Management
USB Port	USB HID Type-B
Serial Communications	USB HID
Intellislot Expansion	(1) Intellislot Port
Network Management Card	Optional (Not Included)
EPO	Yes (NO/NC Configurable)
Data Line Protection	Phone/Fax/DSL/Network Surge Protection
Remote Shutdown	Supported
Monitoring Software	Vertiv Power Insight Compatible
Event Logging	Supported
Firmware Updates	Supported via Optional Communication Card
User Interface, Alerts & Controls
Display	Graphical LCD Display
Status Indicators	LCD Status & Alarm Indicators
Controls	ON/MUTE, OFF, ENTER, ESC Navigation Buttons
Audible Alarm	Configurable Audible Alarms
User Configuration	LCD Configuration Menu
Physical
Height	3.5 in (88 mm)
Width	17.2 in (438 mm)
Depth	20.0 in (510 mm)
Net Weight	43.0 lbs (19.5 kg)
Rack Height	2U
Mounting	Rackmount / Tower Convertible
Color	Black
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 122°F (-15°C to 50°C)
Operating Humidity	20–90% Non-Condensing
Storage Humidity	10–90% Non-Condensing
Operating Altitude	Up to 9,942 ft (3,000 m) Without Derating
Audible Noise	<45 dBA (Line Mode), <55 dBA (Battery Mode)
Conformance
Safety Certifications	UL 1778, cULus Listed
EMC Compliance	FCC Part 15 Class B
Network Surge Protection	UL 497B
Transportation Certification	ISTA Procedure 1A
TAA Compliant	Yes
Condition	New Batteries, Refurbished UPS
Warranty	1 Year Full Replacement Warranty Included
