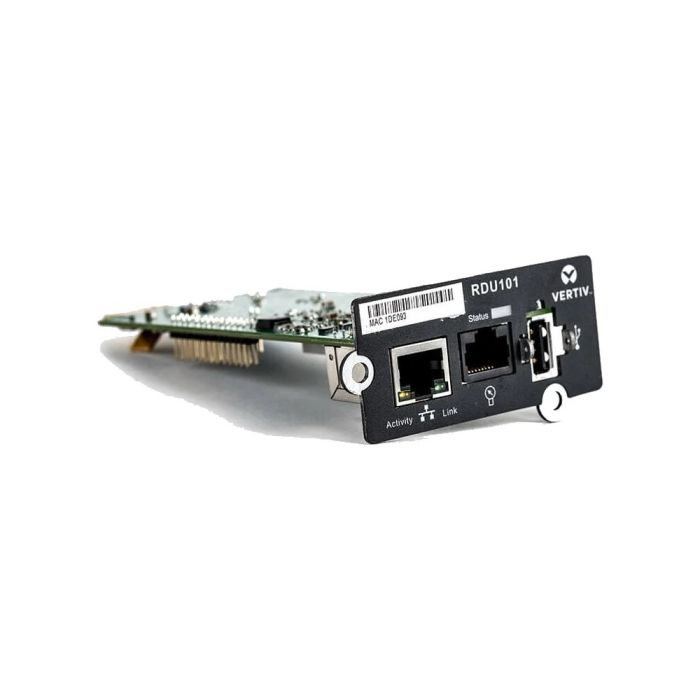

Vertiv Liebert IntelliSlot RDU101 Network Management Card - Refurbished
Vertiv™ Liebert® IntelliSlot™ RDU101 Network Management Card
Remote Monitoring & Management Card for Vertiv / Liebert UPS Systems
Model: RDU101
Compatible with IntelliSlotâ„¢ Enabled Vertiv / Liebert UPS, PDU & Cooling Equipment
SNMP v1/v2c/v3, Modbus TCP & HTTPS Support
Refurbished
1 Year Full Replacement Warranty Included
$249.99
In stock
Manufacturer: Vertiv / Liebert
Model: Vertiv Liebert IntelliSlot RDU101 Network Communications Card
Condition: Refurbished, Fully Tested and Certified for Reliable Operation
Part Number: RDU101
Product Type: IntelliSlot Network Management Card
Warranty: 1 Year Full Replacement Warranty
Includes: (1) Refurbished Vertiv Liebert IntelliSlot RDU101 Network Communications Card
Description: The RDU101 is the network communications card for the Liebert / Vertiv series of GXT UPSs and other compatible Vertiv power and cooling devices. The Vertiv™ Liebert® IntelliSlot™ RDU101 Communications Interface Card enables integration with Trellis™ Enterprise, Trellis™ Power Insight, and LIFE™ Services, and provides web access, environmental sensor data, and third-party protocol support (SNMP v1/v2c/v3 and Modbus TCP) for Vertiv equipment. The card uses Ethernet networks to monitor and manage a wide range of operating parameters, environmental conditions, alarms, and notifications. It also supports secure communication via HTTPS, alarm notifications via email and SMS, and remote authentication through RADIUS, TACACS+, LDAP/AD, and Kerberos. Environmental monitoring is enabled through Liebert SN sensors for temperature, humidity, leak detection, door status, and contact closures.
Â
Â
Â
Liebert Vertiv RDU101 Network Communications Card - User’s Manual
Â
Â
Technical Specifications – Vertivâ„¢ Liebert® IntelliSlotâ„¢ RDU101:Â
| General | Â |
| Model | RDU101 |
| Manufacturer | Vertiv / Liebert |
| Product Type | IntelliSlotâ„¢ Network Communications Card |
| Function | Remote Monitoring & Management Card |
| Installation | Hot-Swappable IntelliSlotâ„¢ Expansion Card |
| Web Access | HTTPS (Chrome, Firefox, Microsoft Edge, Safari) |
| Alarm Notifications | Email & SMS |
| Environmental Monitoring | Supports Liebert SN Environmental Sensors |
| Remote Management | Web Interface, HTTP APIs |
| Firmware Updates | Remote Firmware & Configuration Updates |
| Â | Â |
| Network & Security | Â |
| Supported Protocols | SNMP v1, SNMP v2c, SNMP v3, Modbus TCP |
| Web Protocols | HTTP, HTTPS |
| Authentication | RADIUS, TACACS+, LDAP / Active Directory, Kerberos |
| SNMP Security | MD5 / SHA Authentication, DES / AES Privacy |
| Certificate Support | Customer-Installable HTTPS Certificates |
| Â | Â |
| Power | Â |
| Input Voltage | 7–12 VDC |
| Maximum Power Consumption | 3.6 W |
| Â | Â |
| Communication Ports | Â |
| Ethernet Port | (1) RJ-45 10/100 Mbps |
| Sensor Port | (1) RJ-45 One-Wire |
| Ethernet Cable | Cat 5E, Up to 328 ft (100 m) |
| One-Wire Sensor Cable | Up to 65.6 ft (20 m) |
| Â | Â |
| Physical | Â |
| Form Factor | IntelliSlot Communication Card |
| Width | 2.97 in (75.5 mm) |
| Depth | 5.20 in (132 mm) |
| Height | 1.45 in (37 mm) |
| Net Weight | 7 oz (0.2 kg) |
| Shipping Weight | 1.3 lb (0.6 kg) |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 10–90% RH (Non-Condensing) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Â | Â |
| Compatible UPS Systems | Â |
| Liebert GXT5 Series | Supported |
| Liebert GXT5 Lithium-Ion Series | Supported |
| Liebert Trinergyâ„¢ UPS | Supported |
| Â | Â |
| Compatible Power Distribution Systems | Â |
| Liebert RXA Power Distribution System | Supported |
| Liebert RXV Power Distribution System | Supported |
| Liebert TFX Power Distribution System | Supported |
| Â | Â |
| Compatible Management Software | Â |
| Vertiv Trellisâ„¢ Enterprise | Supported |
| Vertiv Trellisâ„¢ Power Insight | Supported |
| Vertiv LIFEâ„¢ Services | Supported |
| Â | Â |
| Compatible Environmental Sensors | Â |
|---|---|
| Liebert SN-T | External Temperature Sensor |
| Liebert SN-TH | External Temperature & Humidity Sensor |
| Liebert SN-2D | Dual Door Contact Sensor |
| Liebert SN-3C | Three Dry Contact Sensor |
| Liebert SN-Z01 | External Temperature Sensor |
| Liebert SN-Z02 | External Temperature Sensor |
| Liebert SN-Z03 | External Temperature & Humidity Sensor |
| Â | Â |
| Warranty | Â |
| Condition | Refurbished |
| Warranty | 1 Year Full Replacement Warranty |
| Includes | (1) Refurbished Vertiv™ Liebert® IntelliSlot™ RDU101 Communications Network Management Card |
| Â | Â |
